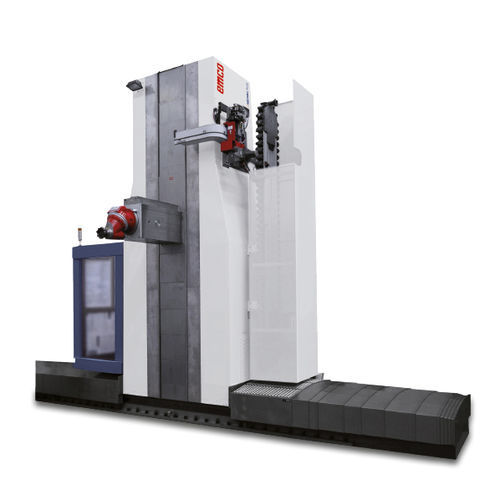

Universal CNC machining center MECMILL PLUS5-axisHSK-63-A60 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- universal
- Spindle mount
- HSK-63-A
- Number of tool stations
- 60 tools, 120 tools, 80 tools
- Associated functions
- milling
- Applications
- for large workpieces
- Other characteristics
- high-precision, high-speed
- X travel
Max.: 16,000 mm
(629.92 in)Min.: 6,000 mm
(236.22 in)- Y travel
Max.: 1,850 mm
(72.83 in)Min.: 1,600 mm
(62.99 in)- Z travel
Max.: 5,000 mm
(196.85 in)Min.: 4,000 mm
(157.48 in)- Rotational speed
Max.: 6,000 rpm
(37,699 rad.min-1)Min.: 4,000 rpm
(25,133 rad.min-1)- Power
40 kW, 50 kW
(54.38 hp, 67.98 hp)- Work feed X-axis
25 m/min
- Work feed Y-axis
25 m/min
- Work feed Z-axis
25 m/min
- Table load capacity
15,000 kg
(33,069 lb)
Description
HIGHLIGHTS
/ Universal Machining Centre with large working area
/ High thermal stability
/ High stiffness and dynamic
/ High accuracy and reliabilityUnmanned machining
EQUIPMENT
/ Universal Machining Centre with Ram and column in box-in-box design
/ Balancing ram asset: Mecof patented system
/ Main spindle motor 40 kW
/ Power milling heads 3+2 and/or 5 axes up to 38 kW, 1000 Nm, 6000 rpm
/ Milling Head with High-Speed Spindle, 5 axes heads up to 42 kW, 1000 Nm, 24000 rpm
