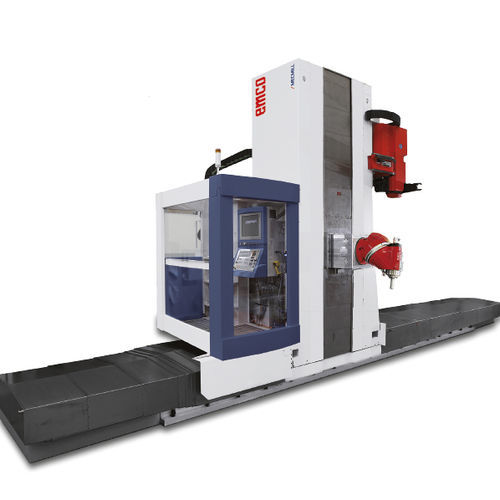

Universal CNC machining center MECMILL

5-axiscolumn typeHSK-100-A

Machine configuration according to customer’s requirement Opposite machines - Master and slave machine with master and slave CNC. The milling center is equipped with SANT-anticollision software. Turning head for supporting a special boring bar: 120 mm diameter, length up to 1500 mm for turning operations up to 1000 mm depth. Full automatic head changing system up to 4 heads storage. Turning head for supporting a special boring bar: 120 mm diameter, length up to 1500 mm for turning operations up to 1000 mm depth. WONDER B.R.A. BALANCING RAM ASSET The automatic electromechanical device counterbalances the ram drop. It is controlled by the machine‘s numerical control and it can be adjusted according to the different milling heads installed. The system improves the geometric accuracy, straightness and parallelism of the ram during vertical and cross axis movement. Software/Control Sinumerik ONE with Operate The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks. With the Sinumerik ONE you rely on: highest performance and flexibility universal openness highly effective personal and machine protection Sinumerik & EMCONNECT, the digital process assistant EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view. The new SINUMERIK ONE has been specially developed for smart manufacturing.
