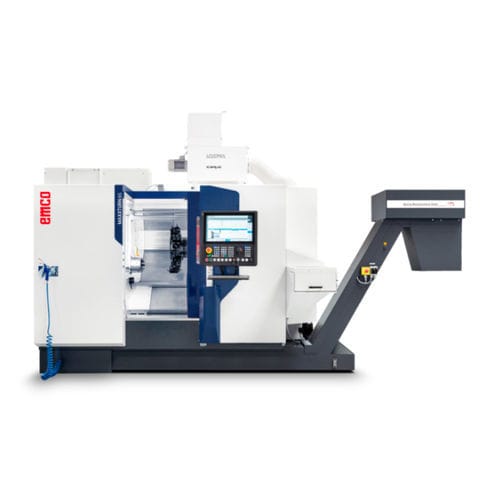

CNC turning center Maxxturn 65 G2

3-axisA2-6A2-8

For the economical production of complex turning/milling workpieces with a predominantly milling component, a 12- or 16-position BMT turret with direct drive is available as an option. With up to 12000 rpm, this turret offers optimum conditions for complete machining. The stable BMT interface allows coolant pressures of up to 50 bar as standard and up to 150 bar as an option. Further advantages are the changeover accuracy and stability of the interface. STEADY REST The hydraulically operated steady rest with a centering range of ø 8 - 101 mm sits on a sliding carriage which is dragged and positioned over the tool slide. It is hydraulically clamped into position by a clamping device. Equipped with chip protection and end position control, the steady rest is connected to the central lubrication system. TAILSTOCK In order to support slim components, the MAXXTURN 65 G2 includes a fully automatic tailstock. It is hydraulically moved over a length of 500 mm. The centre with MT4 cone is directly included in the tailstock body. This ensures compactness and highest stability. TOOL TURRET WITH VDI QUICK-CHANGE SYSTEM Fast 12-fold servo turret with very short switching times for VDI 30 or VDI 40 tools. The angle holders are equipped with ground alignment plates. This eliminates the need for time-consuming alignment of the tool holders. All stations are driven and the swivel speed is adjustable. Y-AXIS CARRIAGE The 90° offset machine base with the broad-based, prestressed guide rails ensures short overhangs and top stability for complete machining.
