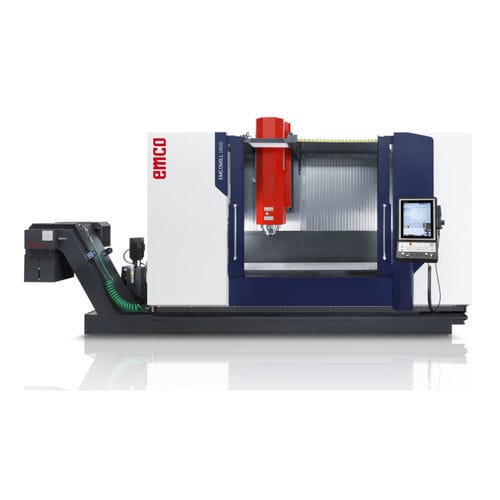

3-axis CNC machining center Emcomill 1800

verticalwith rotary tableBT 40

Quick release with double gripper Siemens or Heidenhain control Highlights Best European quality – Made in the Heart of Europe Flexible tool system Large work area with wide machine doors Cutting-edge control technology from Siemens or Heidenhain The tool magazine has 30 stations (40/60 as option). The tool management with random tool selection uses a double-gripper that allows to make a pre-search of the tool during the machining cycle. Alternatively it is possible to utilise the tool magazine with a fixed place for big-dimensioned tools, leaving the two adjacent stations free. BALL SCREWS Grease-lubricated (central) ball screws and linear roller guides (45 mm in the X- and Y-axes; 35 mm in the Z-axis) offer high resistance against mechanical stress and a high, zero-vibration traverse speed. On the picture, machine equipped with linear scales (option). DESIGN The new EMCOMILL series is designed as a moving column milling machine. The machine bed is made in welded steel, optimised by FEM analysis. The X-, Y- and Z-slides are made in cast iron. Options/Accessories As 4th axis a rotary table with 200 mm diameter can be mounted on customer's request. The rotary table travels CNC controlled and can interpolate with any linear axis (X, Y, Z). For maximum precision in the parts production. SIDE TOOL MAGAZINE DOOR The side tool magazine door allows fast loading and unloading, as well as control and cleaning of the tools.
