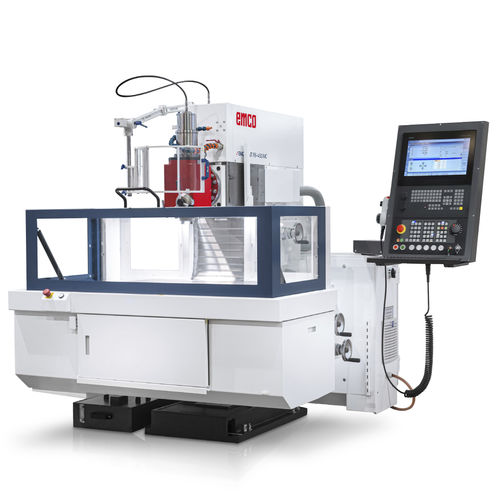

3-axis CNC milling machine Emcomat FB-450 MC

swiveling-spindlewith moving tablehigh-precision

Swivel-mounted control panel Shafts and gears hardened and ground Milling spindle supported radially and axially in four bearings Reversible main spindle Linear guides Sinumerik 828D or Heidenhain TNC 620 Covers eliminate the risk of injuries Main motor with spindle brake Highlights Coolant device Swiveling vertical milling head Automated stepless feed in X, Y and Z axes Mechanical safety handwheels with scale ring Linear guides in X/Y/Z Swiveling device Swivel-mounted vertical milling head. Controlled by end switch. Retractable workspace Retractable workspace guard with vertical clamping area. Swivel-Mounted Vertical Milling Head Swiveling vertical milling head with quill function for manual Drilling operations. A swivel range of +/-90° allows to easily perform even difficult machining operations. Chip shield A large chip shield at the front of the machine allows for trouble-free chip disposal. Apparatus and prototype construction For manufacturing heavy workpieces Education and training Software/Control Sinumerik 828D with Manueller Maschine The Manual Machine operating area provides you with machining capabilities as for a cycle milling machine. All important machining actions can be performed without an associated part program needing to be created. The following functions are available: Measure tool Traverse axes Set zero offset (ZO) Drill, such as centered drilling, centering, deep-hole drilling Mill, such as face milling, pocket milling, multi-edge stud milling Mill contour User-friendly input screens with help screens and animated elements are available for parameterizing the cycles.
