CNC turning center HYPERTURN 45
3-axis2-spindleVDI 25

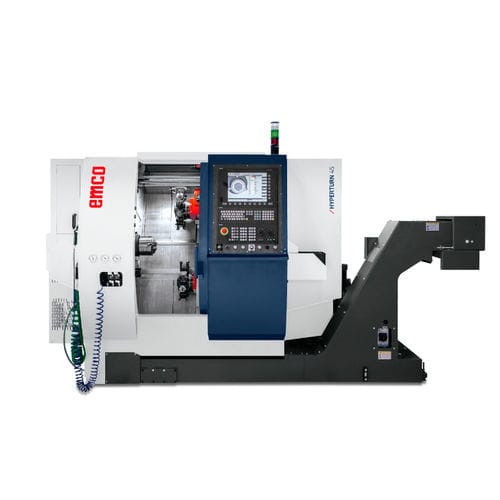

CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 2
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 3
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 4
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 5
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 6
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 7
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 8
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 9
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 10
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 11
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 12
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 13
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 14
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 15
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 16
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 17
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 18
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 19
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 20
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 21
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 22
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 23
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 24
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 25
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 26
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 27
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 28
CNC turning center - HYPERTURN 45 - EMCO GmbH - 3-axis / 2-spindle / VDI 25 - image - 29
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
3-axis
Number of spindles
2-spindle
Spindle mount
VDI 25
Number of tool stations
12 tools
Turret
double-turret
Performance
high-productivity, high-performance
Other characteristics
compact, Y-axis
Associated function
tapping
Diameter

430 mm
(16.93 in)

Spindle speed

7,000 rpm
(43,982.297 rad.min-1)

Maximum part length

480 mm
(19 in)

Maximum cutting diameter

300 mm
(12 in)

Bar capacity

45 mm, 51 mm
(2 in, 2 in)

Axe X

150 mm, 160 mm
(6 in, 6 in)

Axe Z

510 mm
(20 in)

Rapids on X

30 m/min

Rapids on Z

45 m/min

Nominal power

15 kW
(20.4 hp)

Maximum torque

100 Nm
(74 ft.lb)

Coolant capacity

300 l
(79 gal)

Overall lenght

2,680 mm, 3,990 mm
(106 in, 157 in)

Overall width

1,950 mm
(77 in)

Overall height

1,985 mm
(78 in)

Weight

4,200 kg
(9,259 lb)

Description

EMCONNECT – Digital Process Assistant (Sinumerik ONE) Automation with EMCO bar loader, swing loader or gantry loader Driven tools on both turrets Siemens or Fanuc control Highlights Spacious Work Area Fanuc 31iB with 15'' color monitor Highly dynamic drives in all axes Stable Y axis EMCONNECT – Digital Process Assistant (Sinumerik ONE) Made in the Heart of Europe Counter Spindle A 15 kW, water-cooled spindle motor ensures dynamic performance and high levels of precision. The standard machine is equipped with a coolant-fed parts ejector. This places the finished workpieces in the parts catcher and at the same time clears the clamping surface from chips. Additionally, a flexible coolant pipe is mounted above the counter spindle for cleaning. Work Area The generous work area provides space for several tools on both turrets and ensures a continuous chip flow even when few machine technicians are at work. Additional coolant pumps and a sophisticated pipe system clears the chips into the chip conveyor. Main Spindle The 15 kW motor spindle with its integrated water cooling system provides high dynamics but low thermal displacement. A high-resolution shaft encoder provides the optimum conditions for accurate contour milling and drilling. Options/Accessories FINISHED PART CONVEYOR With the parts catcher the finished parts are placed on an accumulating belt, with a usable storage area of 350 x 870 mm. The belt is indexed to prevent the parts, some of which are very complex, from falling on top of each other.
