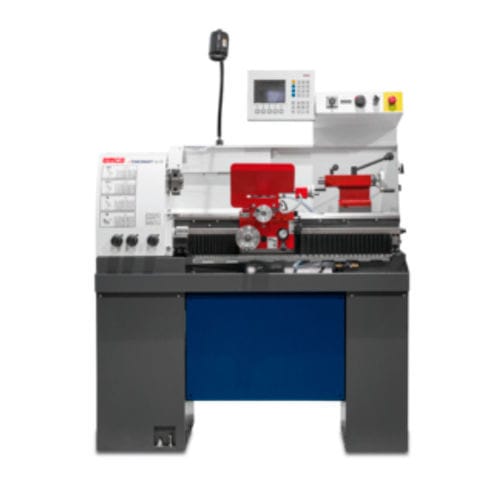

CNC lathe Emcomat-14 D

horizontal3-axisuniversal

Main spindle DIN55029 Tailstock (can be set off-center) Single tool holder (Clamping claw) Electric chuck guard with limit switch Optional equipment: e.g. coolant device, slideable chip protection doors etc. Highlights Diagonally ribbed, induction-hardened machine bed Tool maker precision DIN8605 Digital display for X, Z and Zo Tailstock can be set off-center Main spindle with 40 mm spindle bore Workpieces Examples of use Laboratories Repairs Formula 1 Prototype construction Manufacturing small lot Options/Accessories Fast-Change Tool Holder To speed up the machining process, there are several tool holding systems available. This ensures that tools can be changed quickly. Steady Rest In addition to the tailstock, a wide range of steady rests is available for handling long workpieces. The picture shows a fixed steady rest. Machine Drawer A wide variety of tool holders and other machine parts can be stored in the machine drawer. CENTER DRILL ATTACHMENT FOR LIVE CENTERS The center drill attachment enables a quick change between center and support. Software/Control The EMCO 3 axes position display showing the X, Z and Zo axis permanently on the TFT screen. The registration of the axes positions is done via linear scales or encoder, respectively, with an accuracy of 0.001 mm. Functions: permanent display of X/Z/Zo, constant cutting speed, 999 tools, 999 reference points, home position, remaining travel, imperial/metric, radius/diameter display, single or total display for Z and Zo.
