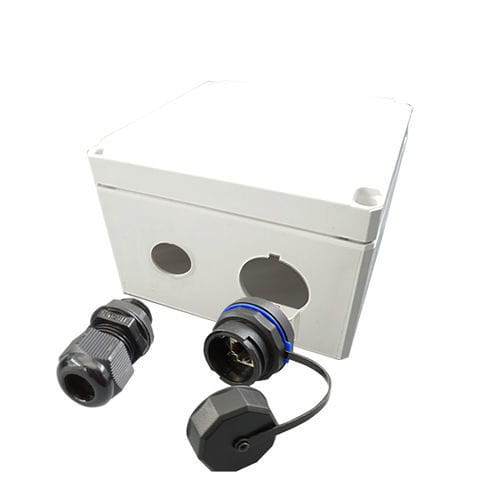

Surface mounted box BIA10000rectangularABSindustrial
Add to favorites
Compare this product
Characteristics
- Construction
- surface mounted
- Configuration
- rectangular
- Material
- ABS
- Application
- industrial, network
- Protection level
- UL, IEC, IP67, IP68
- Other characteristics
- protection
- Width
120 mm
(4.7 in)- Height
122 mm
(4.8 in)- Depth
80 mm
(3.15 in)
Description
EmCom IP68 rated enclosure are tested in accordance with the international standards IEC/EN 60529 as well as IEC/EN 62262 for its impact protection. The range includes mated panel end receptacle and IP rated cable glands are included for complete solution. Please selected the cable end solution from EmCom's solution of IEC 61076u06, variant 01, style 2 or IEC 61076-3-106, variant 01, style 1 respectively.
• Impact Protection: IK07
• Compatible cable range: 5mm-10mm
