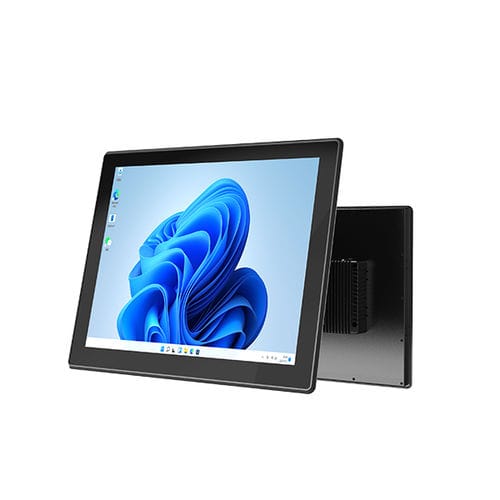

Industrial panel PC ONERugged P17J
widescreenLCDPCAP capacitive touch screen

Industrial panel PC - ONERugged P17J - Emdoor Information Co., Ltd. - widescreen / LCD / PCAP capacitive touch screen
Industrial panel PC - ONERugged P17J - Emdoor Information Co., Ltd. - widescreen / LCD / PCAP capacitive touch screen
Industrial panel PC - ONERugged P17J - Emdoor Information Co., Ltd. - widescreen / LCD / PCAP capacitive touch screen - image - 2
Industrial panel PC - ONERugged P17J - Emdoor Information Co., Ltd. - widescreen / LCD / PCAP capacitive touch screen - image - 3
Industrial panel PC - ONERugged P17J - Emdoor Information Co., Ltd. - widescreen / LCD / PCAP capacitive touch screen - image - 4
Industrial panel PC - ONERugged P17J - Emdoor Information Co., Ltd. - widescreen / LCD / PCAP capacitive touch screen - image - 5
Industrial panel PC - ONERugged P17J - Emdoor Information Co., Ltd. - widescreen / LCD / PCAP capacitive touch screen - image - 6
Industrial panel PC - ONERugged P17J - Emdoor Information Co., Ltd. - widescreen / LCD / PCAP capacitive touch screen - image - 7
Industrial panel PC - ONERugged P17J - Emdoor Information Co., Ltd. - widescreen / LCD / PCAP capacitive touch screen - image - 8
Industrial panel PC - ONERugged P17J - Emdoor Information Co., Ltd. - widescreen / LCD / PCAP capacitive touch screen - image - 9
Industrial panel PC - ONERugged P17J - Emdoor Information Co., Ltd. - widescreen / LCD / PCAP capacitive touch screen - image - 10
Industrial panel PC - ONERugged P17J - Emdoor Information Co., Ltd. - widescreen / LCD / PCAP capacitive touch screen - image - 11
Add to favorites
Compare this product


Characteristics

Screen type
LCD, PCAP capacitive touch screen, widescreen
Display size
17"
Resolution
1920 x 1080
Processor
Intel® Celeron® N5100
Operating system
Windows 11
Construction
fanless, aluminum frame, metal chassis
Applications
industrial, for IoT applications, for the food industry, for data acquisition systems, for the mining industry, for the pharmaceutical industry, for hazardous areas, for agricultural applications
Protection level
IP65, waterproof front panel, rugged, dust-proof
Other characteristics
all-in-one, high-performance, wireless, 2.4/5 GHz, real-time, wide temperature range, high-brightness, sunlight-readable, USB 2.0, RJ45
Memory size

8 GB

Description

Equipped with the new 11th-Gen Intel® Celeron® N5100 processor, featuring the latest Jasper Lake architecture and 10nm process technology. With four cores and four threads, it boasts a turbo frequency of up to 2.8GHz, delivering robust productivity for various tasks. The integrated Intel® UHD Graphics provides impressive graphics processing power, complemented by 8GB of RAM and 128GB of storage for a smooth and responsive experience. CPU 12th Generation Intel® Celeron® N5100 processor Operating System Windows 11 Fanless design Fanless design, using large-area uniform heating fin 7×24 Operation running 24/7 without affecting reliability and service life Rich I/O Interfaces Type A USB: USB3.0 *2+ USB2.0*2 DCIN 12V-24V Power connector*13.5mm Standard Earphone Jack *1 RJ45 *2 (10M/100M/1000M adaptive) DB9 PORT RS232 *2 HDMI 2.0 Type A*1 Multiple Networking WIFI 5 and BT5.0; Supports 4G network connectivity. Multiple interfaces: USB, RS232, RJ45, HDMI, and audio ports Certification Front panel IP65 Easy to Install Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted
