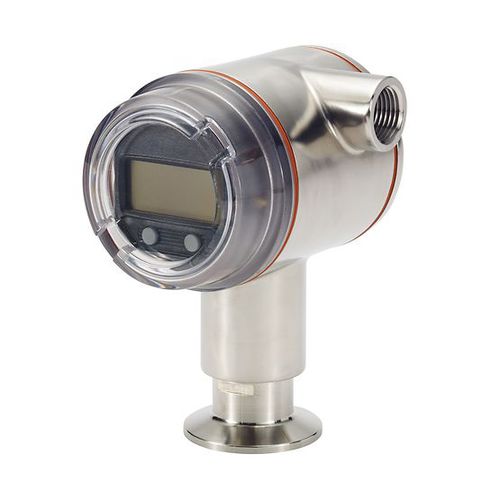

Absolute pressure transmitter Rosemount™ 3051HT
membrane4-20 mAHART

Absolute pressure transmitter - Rosemount™ 3051HT - Emerson Automation Solutions - ROSEMOUNT - membrane / 4-20 mA / HART
Absolute pressure transmitter - Rosemount™ 3051HT - Emerson Automation Solutions - ROSEMOUNT - membrane / 4-20 mA / HART
Absolute pressure transmitter - Rosemount™ 3051HT - Emerson Automation Solutions - ROSEMOUNT - membrane / 4-20 mA / HART - image - 2
Absolute pressure transmitter - Rosemount™ 3051HT - Emerson Automation Solutions - ROSEMOUNT - membrane / 4-20 mA / HART - image - 3
Absolute pressure transmitter - Rosemount™ 3051HT - Emerson Automation Solutions - ROSEMOUNT - membrane / 4-20 mA / HART - image - 4
Add to favorites
Compare this product


Characteristics

Pressure type
absolute
Technology
membrane
Output
4-20 mA, HART, Profibus, wireless
Material
stainless steel
Protection level
IP68, IP66
Applications
process
Other characteristics
high-temperature, with LCD display, sanitary, hygienic
Pressure range

Min.: 0.34 bar
(4.93 psi)

Max.: 55.2 bar
(800.61 psi)

Precision

0.07 %

Long-term stability

0.08 %

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 150 °C
(302 °F)

Description

The Rosemount 3051HT Hygienic Pressure Transmitter is a best-in-class transmitter solution for gage and absolute measurements in the pharmaceutical and food and beverage industries. Built with industry standard process connections, this transmitter connects to sanitary fittings without special mounting hardware. This device meets 3-A™, EHEDG, and ASME-BPE industry standards and features a polished stainless steel housing option. Features Polished stainless steel housing is free of voids and crevices to ensure easy cleaning and withstand washdown conditions (IP66/68 rated) for long term performance and durability Connects to various industry standard sanitary fittings including Tri-Clamp, Varivent, and DIN 11851 connection styles, see full specs for complete list of options Application specific configuration allows you to transform your pressure transmitter into a level transmitter with volume calculations Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime Local Operator Interface (LOI) for simple, local commissioning on-site without the use of extra tools Meets 3-A, EHEDG and ASME-BPE standards to meet industry-specific requirements

VIDEO
