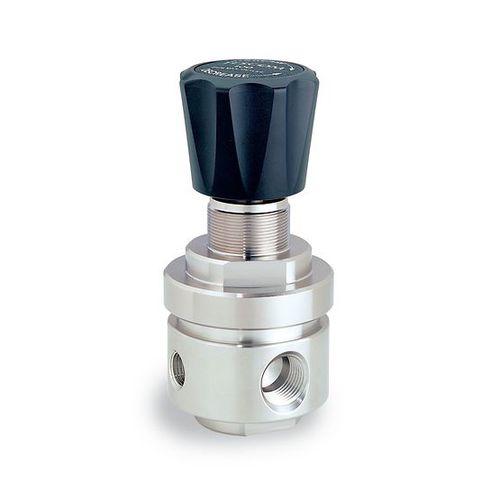

Gas pressure regulator and reducer TESCOM™ 44-3200
membranesingle-stagebrass

gas pressure regulator and reducer
gas pressure regulator and reducer
Add to favorites
Compare this product


Characteristics

Product
for gas
Technology
membrane
Number of stages
single-stage
Material
brass, stainless steel
Applications
industrial
Other characteristics
compact, high-flow, high-purity
Pressure

Max.: 207 bar
(3,002.28 psi)

Min.: 34.5 bar
(500.38 psi)

Orifice diameter

0.38 in, 0.5 in, 1 in

Temperature

Max.: 60 °C
(140 °F)

Min.: -40 °C
(-40 °F)

Description

44-3200 Series is a compact, high flow, high purity single-stage regulator for specialty, flammable and industrial gas flows of 5-50 SCFM / 141-1415 SLPM. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Ideal for laboratory and point-of-use gas systems, laser assist and resonator gases, glove box and isolators. Specifications Diaphragm -316 Stainless Steel, Elgiloy® Seal -Teflon® Seat Retainer -Nitronic 60 Remaining Parts -316 Stainless Steel Port Size & Type -NPTF Flange Flow Capacity -Cv = 1.0, 1.8 (Optional) Load Type -Spring Weight (without gauges) -3.5 lbs / 1.6 kg Additional Information -For custom modifications or a complete system solution, please contact your local sales office. Features -True metal-to-metal diaphragm seal to minimize diffusion -Five outlet pressure ranges are available -Gauge ports are standard -Optional high flow model (Cv = 1.8) is available -Panel mounting is optional -Non-venting is standard -Flanged end connections available -Non-venting is standard
