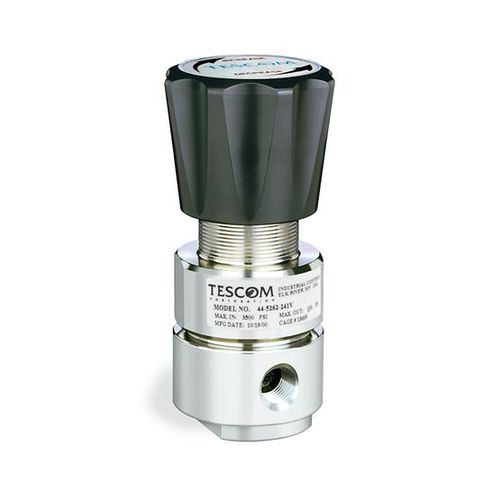

Gas pressure regulator and reducer TESCOM™ 44-5200
pistonbrassstainless steel

gas pressure regulator and reducer
gas pressure regulator and reducer
Add to favorites
Compare this product


Characteristics

Product
for gas
Technology
piston
Material
brass, stainless steel
Applications
for tests, for pressure calibration
Other characteristics
compact, electro-pneumatic
Pressure

Max.: 241 bar
(3,495.41 psi)

Min.: 27.6 bar
(400.3 psi)

Orifice diameter

0.25 in

Temperature

Max.: 93 °C
(199.4 °F)

Min.: -26 °C
(-14.8 °F)

Description

44-5200 Series is a compact piston sensed pressure reducing regulator designed for heavy cycle duty applications. Venting or air load is optional for use with the ER5000 Electropneumatic Controller. Ideal for use in test equipment, calibration stands and production equipment. Specifications Material -Body, Piston: 316 Stainless Steel or Brass -Bonnet: 300 Series Stainless Steel or Brass -Seats: Vespel® -O-Ring: Viton® -Filter (40 micron): 316 Stainless Steel Remaining Parts -300 Series Stainless Steel and Brass Port Size & Type -1/4 NPTF Flow Capacity -Cv = 0.06, 0.15 Load Type -Dome, Air Weight (without gauges) -2 lbs / 0.9 kg Additional Information -For custom modifications or a complete system solution, please contact your local sales office. Features -Compact and economical design -For gas or liquid service -Piston sensed for high reliability and long service life -Standard version includes 1/4"""" NPTF gauge ports -Brass or Stainless Steel construction -Adjustable stop limits maximum outlet pressure Venting and captured venting is available, NACE compliant designs are available
