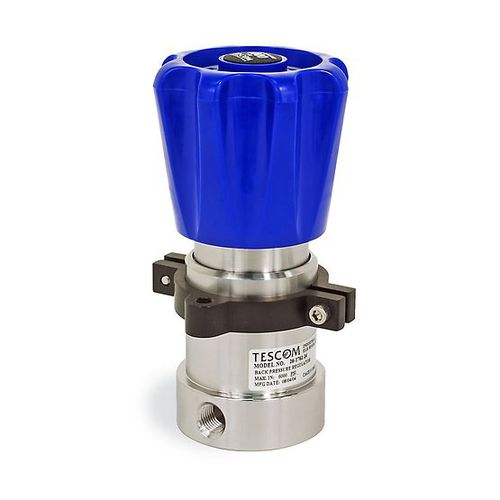

Gas pressure regulator and reducer TESCOM™ 26-1700
pistonsingle-stagestainless steel

gas pressure regulator and reducer
gas pressure regulator and reducer
Add to favorites
Compare this product


Characteristics

Product
for gas
Technology
piston
Number of stages
single-stage
Material
stainless steel, Teflon®
Applications
industrial
Other characteristics
high-flow
Pressure

Max.: 689 bar
(9,993.1 psi)

Min.: 0.35 bar
(5.08 psi)

Orifice diameter

Max.: 1 in

Min.: 0.13 in

Temperature

Max.: 74 °C
(165.2 °F)

Min.: -40 °C
(-40 °F)

Description

26-1700 Series regulator controls pressures up to 15,000 psig / 1034 bar and is suitable for gas or liquid service. Ideal for pump discharge pressure control, reactor pressure control and over-pressurization relief. Specifications Seat Material -CTFE (26-17X1 through 26-17X4), Teflon® (26-17X5 through 26-17X7) O-Rings -Buna-N Back-up Rings -Teflon® Seal -CTFE Trim -300 Series Stainless Steel Flow Capacity -Cv = 0.10 (26-17X1 through 26-17X4) -Cv = 0.14 (26-17X5 through 26-17X7) Weight -5 lbs / 2.2 kg Additional Information -For custom modifications or a complete system solution, please contact your local sales office. Features -Accuracy: ±1% of central pressure range -NACE Compatible design available -Wide range of applications due to: – Seven different control pressure ranges – 200-15,000 psig / 13.8-1034 bar control is optional – High flow Cv = 0.60 and low flow Cv = 0.02 models are ava -Bubble-tight shutoff at all reseat pressures -Safe and reliable piston-style sensor -Panel mounting is standard -Compatible with TESCOM Air Actuators and ER5000 Electropneumatic Controllers -Flanged end connections available

Catalogs

No catalogs are available for this product.

See all of Emerson Automation Solutions - TESCOM‘s catalogs
