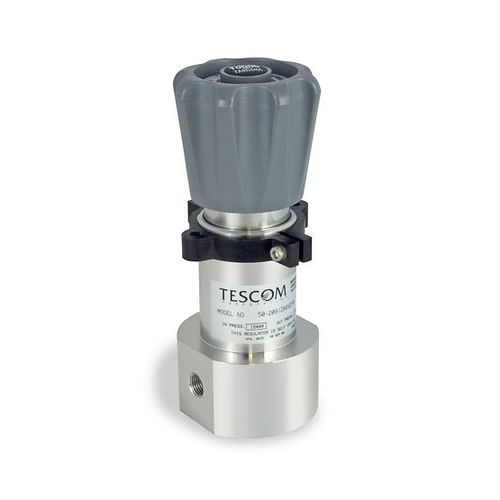

Oil pressure regulator and reducer TESCOM™ 50-2000
stainless steelfor hydraulic applicationshigh-pressure

oil pressure regulator and reducer
oil pressure regulator and reducer
Add to favorites
Compare this product


Characteristics

Product
for oil
Material
stainless steel
Applications
high-pressure, for hydraulic applications
Pressure

690 bar, 1,034 bar
(10,007.6 psi, 14,996.9 psi)

Orifice diameter

0.25 in, 0.5 in

Temperature

Max.: 74 °C
(165.2 °F)

Min.: -26 °C
(-14.8 °F)

Description

50-2000 Series pressure reducing regulator is specifically designed for extended life operation in high pressure hydraulic applications. Ideal for use in wellhead control panels, subsea valve acutation, chemical injection and Hydraulic Power Units (HPU). Specifications Material -Body: 316 Stainless Steel -Seat, Vent and Main Valve: 17-4 Stainless Steel, Vespel® -Back-up O-Rings: See Part Number Selector -Remaining Parts300 Series Stainless Steel, 17-4 Stainless Steel, and Nitronic 60 Flow Capacity -Cv = 0.02, 0.06, 0.12 Load Type -Spring, Air Weight -5.5 lbs / 2.5 kg Additional Information -For custom modifications or a complete system solution, please contact your local sales office. Features -New stem and seal design extends service life in crucial high pressure water-based hydraulic applications -Specially designed seat and valve for excellent operation in hydraulic applications -Segregated captured venting -Tapered poppet design for better pressure control -Higher pressure models are available
