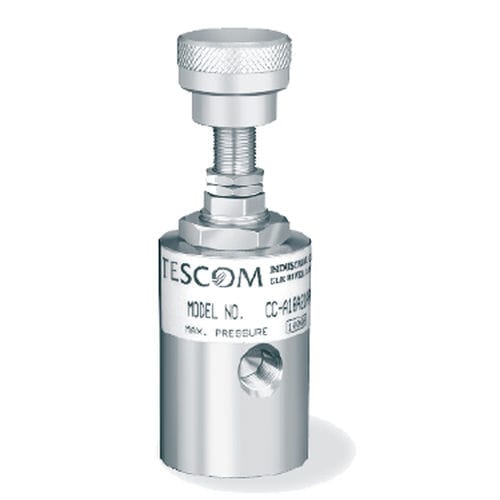

Globe valve TESCOM™ CC

manualflow controlshut-off

CC metering valve is rated to 10,000 psig / 690 bar and contains a non-rotating stem to reduce seat and stem wear. The valve features over 20 turns from shutoff to full open, providing excellent flow control. Ideal for use in injection, calibration and sample systems. Suitable for GC carrier gas and super critical fluid extraction. Specifications Material -Body: 316 Stainless Steel -Seat: Peek, Vespel® -O-Rings: Ethylene Propylene, Viton®, 90 -Durometer Buna, Kalrez® -Back-up Ring: Teflon® Remaining Parts -300 Series Stainless Steel Operating Temperature - -30°F to 300°F / -34°C to 149°C Connections -NPTF, SAE (1/8 only), High Purity Internal Connections (HPIC) Flow Capacity -Cv = 0.00125 Maximum -Cv = 0.00005 Maximum -Cv = 0.01 Maximum Weight -0.9 lb / 0.4 kg Additional Information -For custom modifications or a complete system solution, please contact your local sales office. Features -Compact design -Can be used at high and low pressures -Controls gas flow with extreme accuracy -Accurate flow control into both vacuum and/or positive pressure application -Non-rotating stem assists in reducing seat wear
