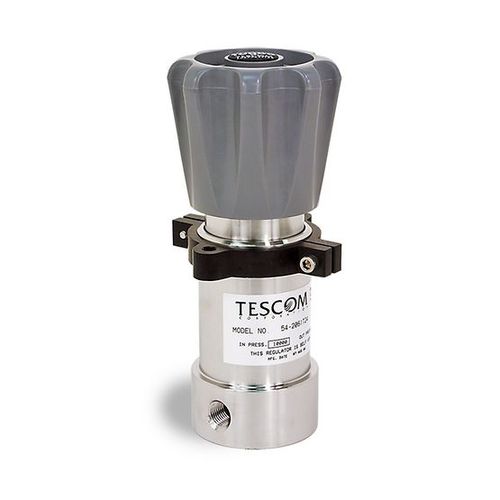

54-2000 Series pressure reducing regulator is suitable for 10,000 psig / 690 bar inlet and outlet hydraulic applications. Segregated and captured vent allows for convenient downstream pressure reduction adjustments. Hardened Stainless Steel seat and stem provide excellent wear resistance in harsh applications. Ideal for use in wellhead control panels, subsea valve actuations, Hydraulic Power Units (HPU) and component testing.
Material
-Main Valve, Vent Seat, Poppets: 17-4 Stainless Steel
-O-Rings: Viton-A®, Buna-N, Ethylene Propylene, Kalrez®
-Back-up Rings: PTFE
Remaining Parts
-300 Series Stainless Steel and 17-4 Stainless Steel
- ² For extended temperatures from -40°F to 400°F / -40°C to 204°C, consult TESCOM.
Port Size & Type
-SAE, NPTF, MS33649, High Pressure, Medium Pressure
-External Vent Port (1/4): SAE, NPTF, MS33649
Flow CapacityMain
-Valve: Cv = 0.06
-Vent Valve: Cv = 0.08
Load Type
-Spring
Weight
-5.3 lbs / 2.4 kg
Additional Information
-For custom modifications or a complete system solution, please contact your local sales office
Features
-Special models available for 15,000 and 20,000 psig / 1034 and 1379 bar
-Segregated vent for easy pressure adjustments in either direction
-Main valve cartridge
-High-impact handknob
-Cartridge style models are available
-NACE compatible designs are available
-Compatible with TESCOM air actuators and ER5000 Electropneumatic Controller
-Piston-sensed design ensures safety and reliability
