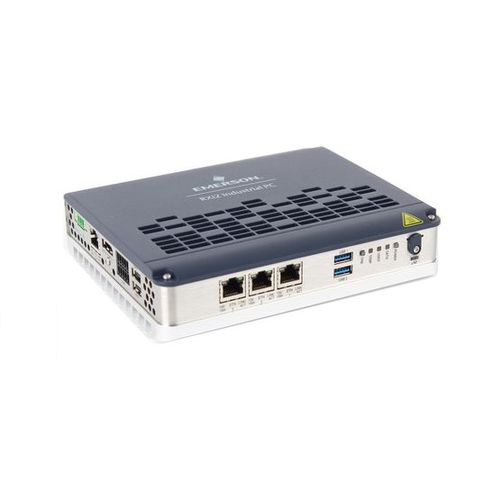

Box PC RXi2 - BP

USBUSB 2.0RS-232

The RXi2-BP IPC delivers high compute performance in a rugged and compact enclosure, well suited to run HMI, historian, and analytics applications right at the machine to enable improved real-time control of operations and better integration into plant-wide systems. Features -AMD Ryzen V1000/R1000 CPU, 2-4 Core, 2.0 - 2.4 GHz base frequency -Fanless operation in a rugged and extended temperature environment -4 (optional 6) Gigabit Ethernet ports (three with Time SYNC IEEE1588 and 802.1AS). Optional fiberoptic interface. -optional PCIe Expansion slots -Patented CPU Passive Cooling Technology, enabling operation in -40C to 70C without any CPU performance degradation -Optional Non-Volatile RAM for fast and frequent data writes, 1Mbit MRAM (optional 4Mbit) Specifications IPC FamilyRXi2-BP AMD Ryzen V1000/R1000 Series CPUAMD V1605B 2.0GHz CPU Power12W-25W CPU Core Count4 Memory8GB ECC Storage128GB SSD Non-Volatile RAMno NVRAM Ethernet4x 10/100/1000BASE-T USB2x USB 3.1, 2x USB 2.0 Serial Interfaces1xRS232, 1xRS422/485 Expansion Slots0 Slot Pre-installed OSno OS Operating Temperature0C to 70C
