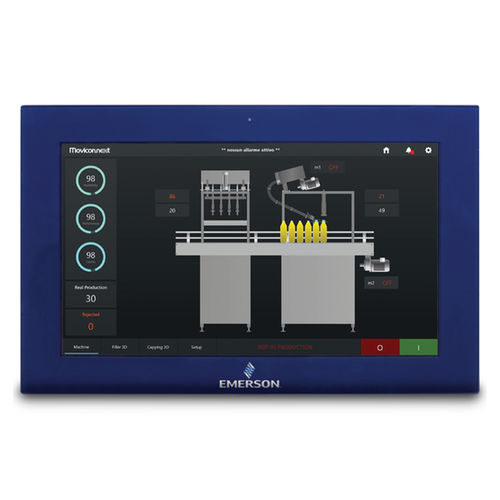

Projected capacitive touchscreen HMI IC760COW12CDA

panel-mountwall-mountVESA mounting

12" RXi HMI Emerson Bezel, Outdoor SLR Widescreen Features Next generation visualization with Movicon WebHMI at the core of the RXi HMI, ready to operate out of the box IIOT Ready with OPC UA and MQTT protocols, robust toolsets and graphic packages, and tools for analysis Easily swap between screen size options of 12" to 24" in a widescreen format (12" and 15" models also offer outdoor Sunlight Readable (SLR) screens) Effectively operate in temperatures as high as 65 degrees C and as low as -20 degrees C with the capability to operate indoors or outdoors IP66 rated screens that protect against dust, moisture,and even direct water jets Specifications Touch Screen Projected Capacitive Touch (PCT/PCAP), Multi-touch (10-point) Status Indicator Tri-color LED Operating System Windows 10 IOT Enterprise LTSC Certifications UL, CE, FCC, RoHS, ATEX, IECEx Marine ABS, BV, DNV GL, LR UL Listed US/CAN HazLoc Class 1 Division 2, Class 2 Division 2, Class 3 Division 1 RAM 4GB SSD 128GB
