Box PC R2X1N1A0B1T0A

6th generation Intel® Core™USB 3.0USB 2.0

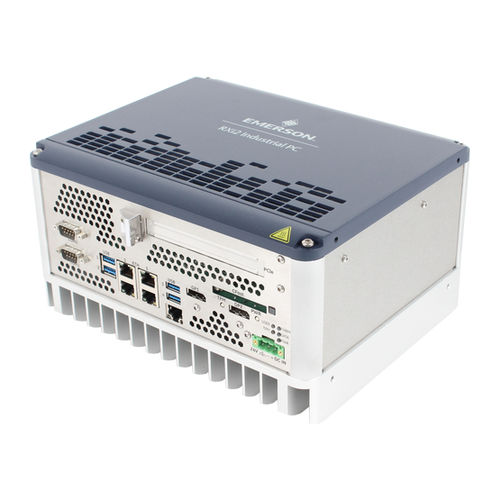

The RXi2-XP IPC delivers compact, rugged, mid-to high-range performance computing capabilities to run HMI, historian, and analytics applications right at the machine to enable improved real-time control of operations and better integration into plant-wide systems. Features 6th Generation Intel Core i3, i5, i7 and Xeon CPUs Fanless operation in a rugged and extended temperature environment 5 Gigabit Ethernet ports (four with Time SYNC IEEE1588 and 802.1AS, one with AMT remote management), optional Fiberoptic interfaces 0, 1, 2 or 4 PCIe Expansion slots Patented CPU Passive Cooling Technology, enabling operation in -40C to 70C without any CPU performance degradation Cfast and hot swappable externally removable 2.5" SATA drives, RAID enabled Specifications IPC Family RXi2-XP Intel 6th Gen Core CPU Intel i3-6100E 2.7GHz CPU Power 35W CPU Core Count 2 Memory 16GB Storage 256GB SSD Ethernet 5x 10/100/1000BASE-T (1x remote management AMT, optional SFP) USB 4x USB 3.0, 2x USB 2.0 internal Serial Interfaces 2xRS232 Expansion Slots 1 Slot Pre-installed OS no OS Operating Temperature 0C to +60C
