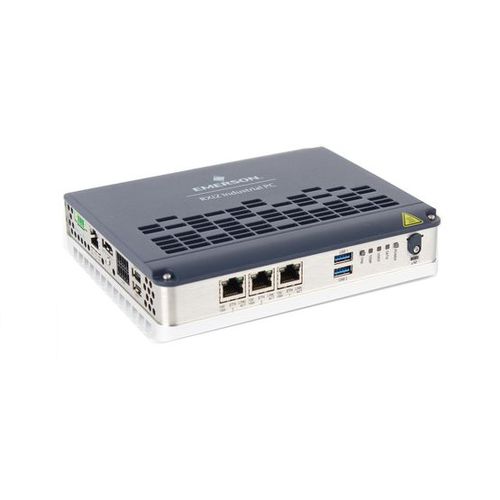

Box PC R2B0N8N2N3A0A

USB 2.0RS-232gigabit Ethernet

The RXi2-BP IPC delivers high compute performance in a rugged and compact enclosure, well suited to run HMI, historian, and analytics applications right at the machine to enable improved real-time control of operations and better integration into plant-wide systems. Features AMD Ryzen V1000/R1000 CPU, 2-4 Core, 2.0 - 2.4 GHz base frequency Fanless operation in a rugged and extended temperature environment 4 (optional 6) Gigabit Ethernet ports (three with Time SYNC IEEE1588 and 802.1AS). Optional fiberoptic interface. optional PCIe Expansion slots Patented CPU Passive Cooling Technology, enabling operation in -40C to 70C without any CPU performance degradation Optional Non-Volatile RAM for fast and frequent data writes, 1Mbit MRAM (optional 4Mbit) Specifications IPC Family RXi2-BP AMD Ryzen V1000/R1000 Series CPU AMD R1505G 2.4GHz CPU Power 12W-25W CPU Core Count 2 Memory 16GB ECC Storage 256GB SSD Non-Volatile RAM no NVRAM Ethernet 4x 10/100/1000BASE-T USB 2x USB 3.1, 2x USB 2.0 Serial Interfaces 1xRS232, 1xRS422/485 Expansion Slots 0 Slot Pre-installed OS no OS Operating Temperature 0C to 70C
