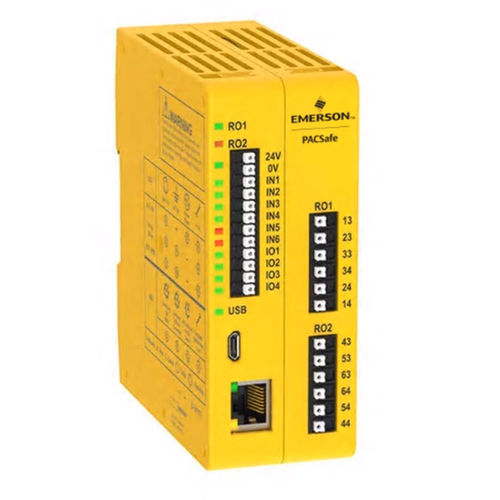

Configurable safety system IC225SSE262

Ethernet

Designed with Original Equipment Manufacturers and their end-users in mind, PACSafe Configurable Safety Controllers are perfect for machine automation applications requiring integrated SIL3 machine safety with multiple coordinated safety sensors. PACSafe solutions easily scale from small to complex machines and provide an intuitive graphical-based interface for configuration and programming. Features Flexible and intuitive icon-based programming with drag-and-drop configuration Pre-configured safety function blocks to simplify application programming Twenty-six inputs, including eight that can be used as non-safe outputs Two OSSD outputs, each can be split into two single-channel safety outputs Expandable models for adding up to 8 additional I/O modules Standard Industrial Ethernet, optional LCD Display, and accessories for full customization Specifications Module Type Base Controller Expandable No LCD Display No Relative Humidity 90 percent at 50C Max Operating Temperature 55C Input Operation Simultaneous or Concurrent Number of Safe Inputs 26 Number of Convertible Inputs 8 Safety Input - Dual Channel (Dry Contact) 5-50 mA at 24 VDC Safety Input - Dual Channel (Solid-State) 50 mA at 15 - 30 VDC Safety Input - Reset 5-50 mA at 24 VDC Independently Controlled Safe Outputs 4 Output Configuration 2 OSSD Pairs Non-Safe Output Configuration Up to 11 PNP Supply Voltage 24 VDC Terminal Type Screw (Spring Clamp available as an accessory) Removable Terminals Yes
