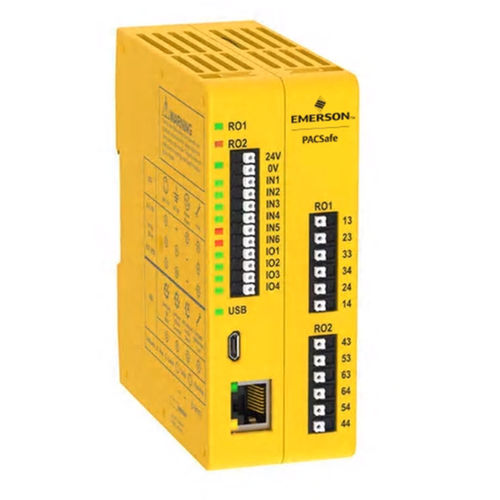

Configurable safety system IC225SSE102

Ethernet

Designed with Original Equipment Manufacturers and their end-users in mind, PACSafe Configurable Safety Controllers are perfect for machine automation applications requiring integrated SIL3 machine safety with multiple coordinated safety sensors. PACSafe solutions easily scale from small to complex machines and provide an intuitive graphical-based interface for configuration and programming. Features Same intuitive, icon-based programming with drag-and-drop configuration as the expandable models but in a compact footprint Ten inputs, including four that can be used as non-safe outputs Two six-amp safety relay outputs, each with three N.O. sets of contacts Automatic Terminal Optimization (ATO) can increase the inputs from 10 to up to 14 Standard Industrial Ethernet two-way communication External drive for fast swap and quick configuration without a PC Specifications Module Type Base Controller Expandable No LCD Display No Relative Humidity 90 percent at 50C Max Operating Temperature 55C Input Operation Simultaneous or Concurrent Number of Safe Inputs 10 Number of Convertible Inputs 4 Safety Input - Dual Channel (Dry Contact) 5-50 mA at 24 VDC Safety Input - Dual Channel (Solid-State) 50 mA at 15 - 30 VDC Safety Input - Reset 5-50 mA at 24 VDC Independently Controlled Safe Outputs 2 Output Configuration 2 sets of 3 normally open Non-Safe Output Configuration Up to 4 PNP Supply Voltage 24 VDC Terminal Type Spring Clamp Removable Terminals No Vibration 9-150 Hz at 1g occasional/0.5g continuous
