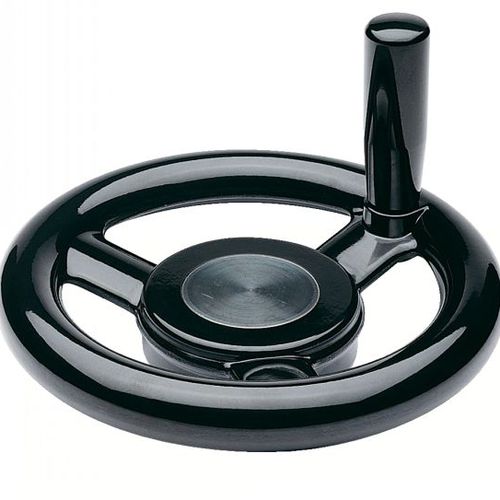

Operating handwheel 13-09 seriesspokedthermoplastic
Add to favorites
Compare this product
Characteristics
- Function
- operating
- Configuration
- spoked
- Material
- thermoplastic
- Outside diameter
Max.: 105 mm
(4.13 in)Min.: 55 mm
(2.17 in)- Bore size
Max.: 12 mm
(0.47 in)Min.: 10 mm
(0.39 in)
