Transport tank Traspo®

fuelIBCcarbon steel

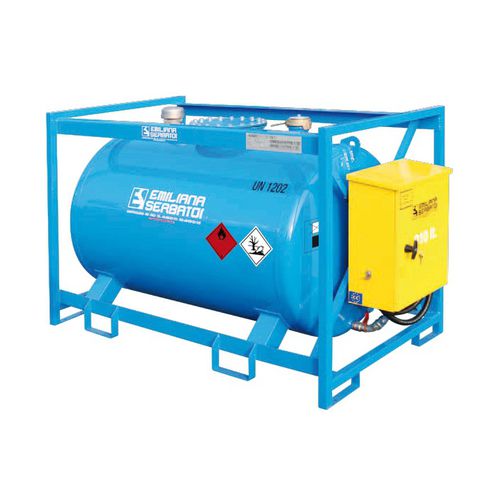

To solve the fuel transport issue, Emiliana Serbatoi has designed and developed TRASPO®, a line of steel tanks, approved by Italian Ministry of Infrastructure and Transport in compliance with ADR regulation and UN marked. TRASPO ® tanks are built in carbon steel, tight welded and are externally protected by a proper steel frame. The TRASPO® range consists of five main models with capacities of 250, 380, 450, 620 and 910 litres. Horizontal (Mod. 380-620-910) and vertical (Mod. 250-450) cylindrical tanks, fixed in a shock proof and anti-roll protective steel frame. Technical specifications: • - Watertight electro-welded, sandblasted and oven-baked powder coated. • - Equipped with internal breakwater plates (only for 620 and 910 models). • - Manhole, diam. Ø 300 mm complete with gasket and tight bolted cover, 10 mm thickness. • - 2" safety and emergency vent valve, homologated according to regulations. • - Ball valve installed on the suction point, equipped with a lockable lever to prevent unwanted opening. • - Lifting lugs for balanced lifting from the top, including when fully loaded. • - Forklift pockets located on the bottom of the steel frame and proper holes for floor anchoring. • - Ready for earthing and equipotential connection. TRASPO ® can be provided with a fuel transfer unit installed in an oven-baked powder coated metal cabinet, key lockable, fitted according to the customer’s requirements.
