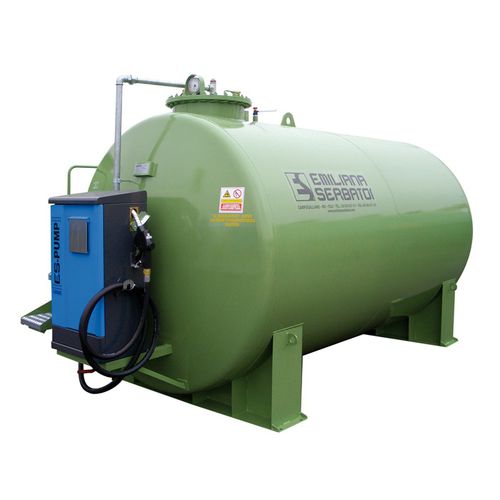

Storage tank DP series

dispensingfuelcarbon steel

Double-skin horizontal cylindrical tanks made in S235JR carbon steel according to UNI EN 10025 designed and manufactured in compliance with UNI EN 12285-2, made with shell plates and dished ends; all joints will be submerged arc-welded. The welding procedure complies with EN 288. Tanks are supported by structural steel saddles. External treatment: tanks are sandblasted, covered with primer and finished with one coating of painting. Each tank will be pressure-tested at 1.5 bar or 0.5 bar for the interstitial space and will be provided with a centesimal calibration table. This type of double-skin tanks represents an ideal solution for storage or refuelling units where safety and environmental protection are required. Main features: • - Ø 600 mm access manhole complete with gasket and bolted cover. • - Loading access port with lockable quick cap and overfill protection valve. • - Vent provided with flame arrestor net. • - Suction line provided with foot valve and filter. • - Aluminium-made dip stick calibrated gauge to manually measure the fuel level. Alternatively: a) mechanical floating level gauge; b) magnetostrictive level probe (ES Level). • - LAG14-type leak detection system, connected to the double-skin inlet connection. The interstitial space is filled with anti-freeze mono-propylene glycol solution, which is a non-toxic, non-contaminating liquid. • - A wide range of pumps, dispensers and fuel meters to meet a large range of requirements and applications. Optionally can be installed a fuel management system to control fuelling operations and tank level. For additional information please visit the dedicated sections.
