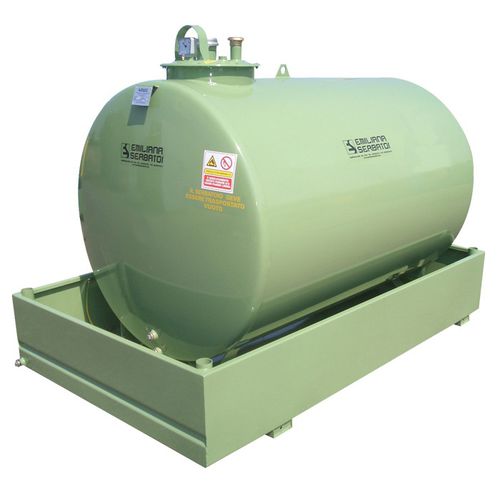

Feeding tank GE series

storagefuelcarbon steel

Fuel storage and feeding tanks for generating sets and heating systems. Manufactured in compliance with DPR n. 1391 of 22 December 1970 and according with the requirements of the Circular Letter n. 73 of 29 July1971 issued by the Ministry of the Interior. They are horizontal or verticale cylindrical tank manufactured by using shell plates and dished ends made of carbon steel quality S 235 JR according to UNI EN 10025, watertight electro-welded (submerged arc welding process), provided with anti-roll supports, primed with a rust preventing layer and finished with a layer of green paint. Standard Capacities: 490, 1000, 1300, 2400, 3000, 5000, 7000 and 9000 lt (larger capacities on request). Tanks are delivered pressure-tested, ready-to-use and equipped with: • - Ø 400 mm manhole complete with oil gasket and tight bolted cover, 3” lockable filling quick plug, mechanical overfill prevention valve calibrated to interrupt the fuel flow at 90% of the tank’s geometric capacity, vent device with flame arrestor mesh, mechanical float operated tank contents gauge with planetary gear, adjustable scale in cm. • - N. 2 suction and return plugs, size 1", ready for connection with gen sets, or other equipment. Suction line is completed with foot valve and strainer. • - Drainage point provided with a safety cap for routine maintenance and cleaning. • - One point ready for earthing and equipotential connection.
