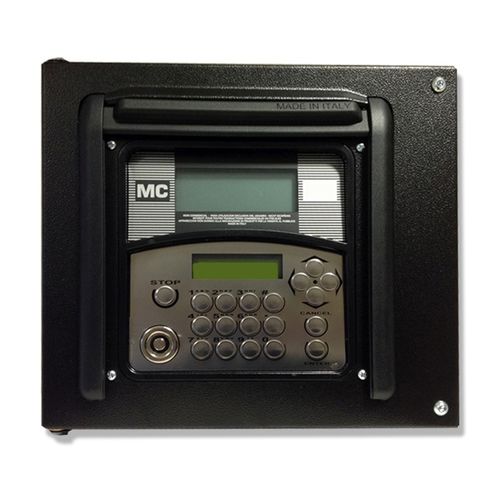

Level monitoring system MC BOX

fuel consumptionfor storage tanksfor fuel

MC BOX is a multi-user control system to enable the control of the fuel consumption. The MC system consists in a multi-user panel contained into a protection box, a dedicated software to be installed in a PC and a series if accessories to export the data from the panel to the PC database. The control panel can manage directly: • - Switching ON/OFF of the pump, • - Recognize of authorized users by means of i-button key or password, • - Preset the quantity to dispense, • - The managing of a pulse meter for measuring the quantity dispensed, • - The managing of an external level switch to switch off the pump in case of low level input, • - The managing of an external nozzle switch combined with the nozzle holder, • - The direct connection to a PC for exporting data files, • - The managing of an external printer. • - The system is easy to install and whether proof. • - The wiring connection are located into electrical boxes easy to access. Construction details: • - Sturdy casing whether proof to contain the panel with easy access to the connection boxes. • - Electronic panel with double display and keypad for entering code number and i- button key reader. • - Max current: 6,5 Amp at 230 V. Main Features: • - Possibility to handle up to 120 users provided with user codes and magnetic keys. • - The total consumption per each user within a defined period, directly on the control panel. • - Local memory capable of storing data for the last 255 refueling. • - Can accept vehicle registration numbers and odometer readings. • - Records date and time of refueling.
