Nutating disc flow meter

volumefor fuelDC

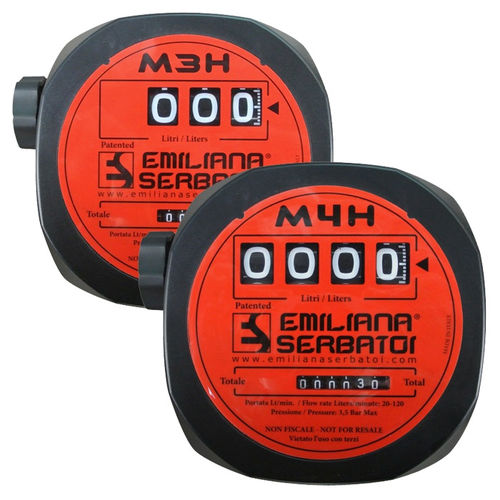

M3H and M4H are nutating-disk meters that measure the exact quantity of the dispensed fuel or lubricant. They are designed for non-commercial use only. These flow-meters are reliable, inexpensive, easy to install and simple to calibrate on the workplace. The Pulser model is fitted with a pulse emitter for connection to a fuel management system. Thanks to reduced flow resistance, they can also function by gravity. Technical Data: Performance Specifications • - Flow-rate (range): 20-120 l/min. • - Accuracy: +/-1% of flow range after calibration. • - Repeatability: 0,2%. • - Max. operating pressure: 10 bar. • - Bursting pressure: 30 bar. • - Resolution: 0.1 litre. • - Pulser card type: "Open collector", frequency: 10 pulses/litre, power supply: 6-24 V DC, max 10 mA. Technical Features: Aluminium metering chamber with polybutylene nutating disk. 1" G inlet, 1" G outlet, in line. The top can be rotated to give four different flow configurations. Mechanical readout device with rotating wheels. Subtotals can be set to zero, total readouts cannot. Available with litre units or gallon units. The K44/P model is equipped with a Pulser card, "Open collector" type, externally powered by the receiver. Readout system: • - M3H 3-digit subtotals (max 999 litres), 6-digit totals. • - M4H 4-digit subtotals (max 9999 litres), 7-digit totals.
