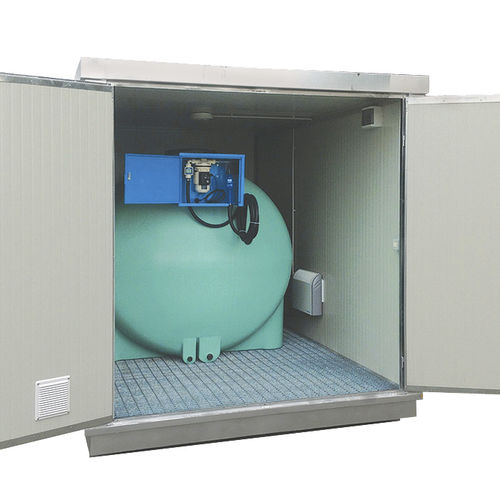

BOX:
• - Structural frame made in carbon steel galvanized; designed for bottom lifting.
• - Roof made with cold formed steel profiles which are shaped in order to gather rainwater as a gutter.
• - Ceiling and walls are made in self-extinguishing “sandwich” panels filled with an insulating polyurethane foam, thickness 30 mm.
• - Floor consists of a galvanised retention basin covered with electrowelded galvanised grid panels; this sump is designed to collect any spill or leak.
• - Double hinged front door; any door is provided with a ventilation grid..
ELECTRICAL SYSTEM:
• - Self-extinguishing electric distribution box, complete with main differential thermo-magnetic two poles circuit breaker.
• - Grounding point.
• - Electric heater, 1.500 W, complete with thermostat.
• - Ceiling lamp with switch.
TANK:
• - High density linear polyethylene tank, monolithic, with high mechanical, chemical and UV resistance; available in azure color (basic line) and in white color (higher chemical resistance version).
• - Available volumes: 3.000 L, 5.000 L, 7.500 L and 10.000 L.
• - Tank’s accessories: manhole with threaded lid, diameter 42 cm for 3.000 L e 5.000 L tanks and 55 cm for 7.500 l e 10.000 L tanks, 1” vent device, 2” loading plug, 1” suction pipe.
DISPENSER:
• - Lockable steel cabinet mounted directly on the tank.
• - Self-priming diaphragm electropump, 230 V - 50 Hz, flow rate 30 L/min.
• - Digital fuel meter.
• - EPDM flexible hose, section 3/4”, length 4 m.
• - Automatic dispensing nozzle.
