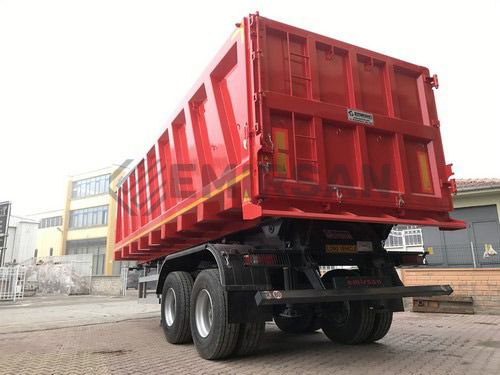

Dump semi-trailer

2-axletowedconstruction

Heavy duty tipper trailer is a type of hydraulic tipping semi-trailer designed for transportation in mining, construction, earthmoving, and other demanding tasks. Also, rock type tipper called usually. Our product with Hardox body is generally suitable for the transportation of hard materials such as large rocks, heavy-duty construction, bauxite, mining materials. Compared to other tipper trailers, the body structure is more durable when transporting large materials. Chassis thickness, number of axles, body steel design provides the highest productivity in the most difficult conditions. Please click for Lorry type product on truck design. TIPPER TRAILER FEATURES Used for: Big rocks, heavy duty construction, bauxite, mining materials Hydraulic System: Hidromas brand Turkish made HYVA type system Axles: BPW, SAF or BPW type Turkish brand axles with 9-12-14-16 tons capacity, drum or disc option Brakes: Wabco, Knorr EBS or dual air brake system Suspension: Air suspension, mechanical leaf spring suspension or bogie type suspension Tires and Rims: Single or Double Tire, 385/60 R22,5 – 315/80 R22,5 – 12 R22,5 – 13 R22,5 Electrical System: Saba, Hella, Aspock brand electrical system with 7 or 15 pin option King Pin: 2” or 3,5” king pin JOST or equivalant Turkish made Landing Gear: 25-35 Tons JOST or equivalant Turkish made Painting: DYO or equilivant brand with primer coating Accessories: Tool box, fire box, spare tire carrier, water tank Capacity 22 to 60 Cbm, 20 to 100 tons payload capacity Chassis Main Beams : 120 to 150 lama width x 12 to 20 mm thickness ST52 Hub Plate : 5 to 10 mm Complete through chassis length, ST52
