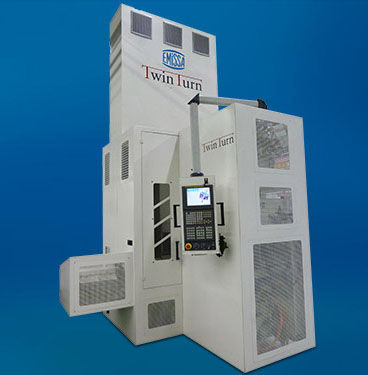

3-axis CNC machining center TWINTURN 250 - DDverticalfor the automobile industrymodular
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Applications
- for the automobile industry
- Other characteristics
- modular
- X travel
780 mm
(30.71 in)- Y travel
385 mm
(15.16 in)- Z travel
240 mm
(9.45 in)- Rotational speed
4,500 rpm
(28,274 rad.min-1)- Power
15 kW
(20.39 hp)- Work feed X-axis
50,000 mm/min
(33 in/s)- Work feed Y-axis
50,000 mm/min
(33 in/s)- Work feed Z-axis
50,000 mm/min
(33 in/s)- Weight
9 t
(9.92 us ton)- Overall length
2,350 mm
(92.5 in)- Overall width
2,300 mm
(90.6 in)- Overall height
4,388 mm
(172.8 in)
Description
• Automatic clamping
• Cones and bearings blowing
• Thru coolant
• CN driven axis
• Hydraulic braked spindle
• Incremental encoders
• Integrated cooling
Options
• DD version ( Upside Down machining) for turning on other side
VIDEO
Catalogs
TWINTURN 250
4 Pages
