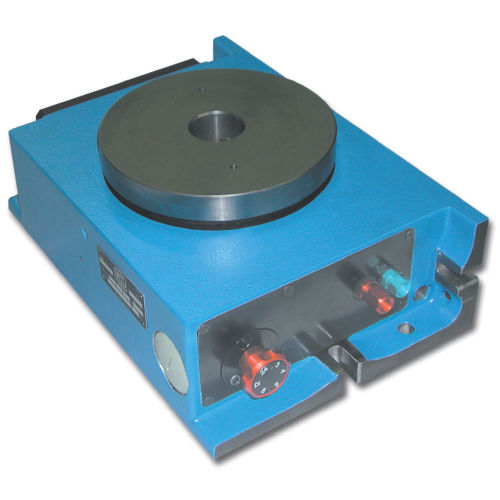

Electric rotary indexing table PI 170

horizontalverticalsingle-spindle

Since 40 years, EMISSA manufactures high-precision index tables with high speed and legendary reliability. Constantly adapted to the needs of customers, EMISSA currently offers an index table with 6 indexing possibilites driven by a selector. An air connector drift on an impulse valve and this one turn on the selected division. This index table fits very well into the design of small transfers machining, welding, assembly and assembly machines. Horizontal or vertical use. 120 shots by minutes. High precision execution. +/- 10 microns to 300 mm diameter. Dimensions • Lenght : 330 mm • Width : 224 mm • Height : 127 mm
