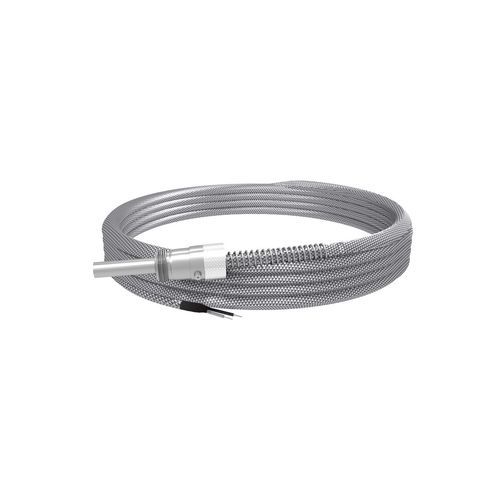

Type J thermocouple type K thermocouplenickelglass
Add to favorites
Compare this product
Characteristics
- Technology
- type K thermocouple, type J thermocouple, nickel
- Other characteristics
- glass
- Temperature
Max.: 400 °C
(752 °F)Min.: 0 °C
(32 °F)
Description
Diameter - Min: 3mm, Max: 6mm
Standard cable types - Fiber glass + fiber glass + braided wire, 2x 0,22mm : Standard Production
Silicone + Silicone, 2x 0,22mm : "Si+Si" is added to order code
Standard cable length - K01 = 1 mt, K1,5 = 1,5 mt, K02 = 2 mt
K03 = 3 mt, K04 = 4 mt, K05 = 5 mt
Sensor type - DIN/IEC-584 "J" FeCu-Ni E= J,
DIN/IEC-584 "K" NiCr-Ni E= K
Protection tube material - Nickel coated brass
Connector - Standard ¼ x 19" (selectable as M12" on ordering)
