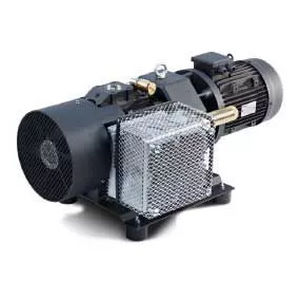

Rotary vane vacuum pump DR series oil-freesingle-stagesuction
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- oil-free
- Number of stages
- single-stage
- Applications
- suction
- Ultimate vacuum
Max.: 400 mbar
(5.8 psi)Min.: 100 mbar
(1.45 psi)- Flow rate
Max.: 1,000 m³/h
(35,314.67 ft³/h)Min.: 3.5 m³/h
(123.6 ft³/h)
Description
Oil-free dry vacuum pumps belonging to the DR series are blade rotary types with rotor supported by bearings, fl anged motor and air cooling, suitable to operate without any lubrication.
Their main features are heavy construction design, easy maintenance, absence of any oil fog on the discharge. The pumps can be used in any applications where no deep vacuum is required.
Applications
> Paper processing industry
> Suction cups and grippers
> Depalletizers
> CNC machinery for woods or glass
