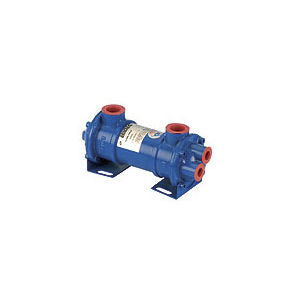

Tubular heat exchanger MG 80

water/oilindustrial

Water-oil exchangers are used to cooling down hydraulic oil or other fluids using water as a cooling medium.. The EMMEGI series includes a range of models with high-efficiency. These coolers are shell and tube construction, plate coolers are also available. Compatible fluids • MINERAL OILS, HL, HLP. • WATER AND OILS EMULSIONS • WATER-GLYCOL MIXTURES • For other fluids, contact EMMEGI. Technical Specifications of the Product • Materials: - copper - brass - AISI304 - CuNi10 - carbon steel • Working pressure: 12 bar. • Fluid flow: from 5l/m to 800 l/m • Potential: up to 8.3 kW/°C • Equipment: - Fixed shell-and-tube element - Removable shell-and-tube element - Immersed shell-and-tube element EMMEGI heat-exchangers water-oil are normally used for the cooling of oil hydraulic systems and are installed on the return line of the system. The EMMEGI range comprises a vast choice of applicable models, highly efficent. The range of high quality material working with precision machinery, all produce an extremely reliable product. The EMMEGI heat exchangers have a water system of 1,2 or 4 circuits an they can be supplied with thermostatic valves which greatly assist in the reduction of water consuption. Compatible fluids . MINERAL OILS; HL; HLP. . MIXTURE WATER/OIL . WATER-GLICOLIC ACID . WATER/INDUSTRIAL WATER . FOR OTHER FLUIDS, CONTACT EMMEGI Technical specification . VERSION: FRESH WATER - SEA WATER - AISI . OPERATING PRESSURE : 12 bar . TEST PRESSURE : 18 bar . MAX OPERATING TEMPERATURE : 120°C Installation The correct position of inlet of the two fluids is indicated in fig. 1. They should circulate in opposite direction, in order to obtain the maximum heat exchange.
