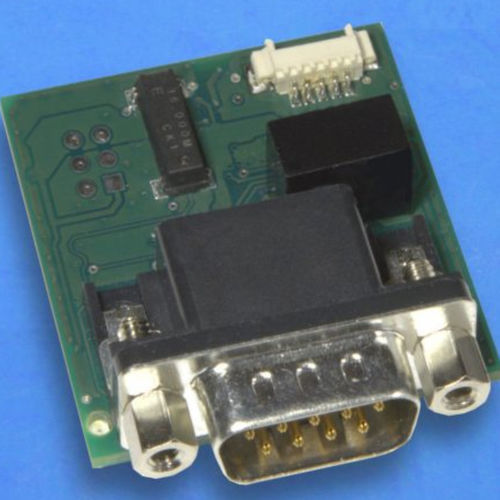

USB interface CPC-USB/embedded

compact

Description CPC-USB/embedded is a CAN interface for internal USB ports. Due to its compact size it is eminently suitable for applications in embedded PCs. It is installed directly at a SUB-D9 case opening or a slot panel and wired with the included cable to a pin connector of an internal USB interface of the mainboard. The interface is equipped with a Cortex M3 microcontroller providing onChip CAN and USB controllers. By combining the powerful CPU with internal peripherials low latencies can be achieved. The interface is powered via USB, a separate supply for the CAN side is not needed. CPC-USB/embedded provides galvanic decoupling between CAN and USB and has an extended operating temperature range. It supports 11-Bit and 29-Bit CAN identifiers. Application development kits for the operating systems Windows and Linux are offered additionally. Linux socketCAN is supported as well. Special Features USB/CAN Interface CPC-USB/embedded Powerful Cortex M3 microcontroller with internal CAN controller Extended temperature range Supports CAN protocols 2.0A and 2.0B Supply over USB Galvanic isolation Firmware flashable over USB Development kits for Windows 2000/XP/Vista/7/8.x and Linux available Linux socketCAN is supported
