Network repeater S10I

current

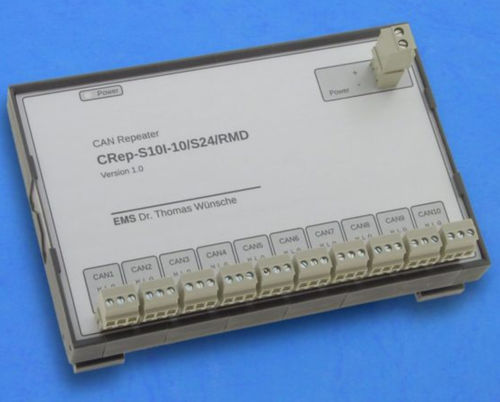

Description The compact CAN repeater CRep S10I transmits and amplifies signals transparent to the CAN protocol. Each of the ten CAN connections has the physical behaviour of a single bus node. CRep S10I permits a flexible design of the network topology and offers special support for star structured networks. Furthermore treestructures and long stub lines are supported. Through the possibility to use the network structure that fits the application best a reduction of installation costs can be reached. The maximum data rate in CAN networks, depending on signal propagation delays, can be increased, if CRep S10I is used to improve the network structure. An increase of the maximum node count in a CAN network can be reached by splitting the network in subnets that are connected by CRep S10I. Each subnet makes the number of CAN nodes possible permitted by the drivers output current. Where CAN signals have to be transmitted over long distances, CRep S10I can be used for signal conditioning. The capability to detach erroneous segments from the rest of the CAN system reduces the impact on the intact bus segments for the most commonly occuring errors. All CAN channels are galvanic separated to each other and to the power supply. The presence of power is indicated by a LED. Each CAN channel is provided with a LED indicating that this channel has originated a CAN message. Special Features CAN-Repeater CRep S10I Protocol transparent CAN repeater 10 CAN channels Low propagation delay Galvanic separation between CAN channels and power supply ISO 11898 compatible bus interface Detach of dominant locked bus segments Rail mountable
