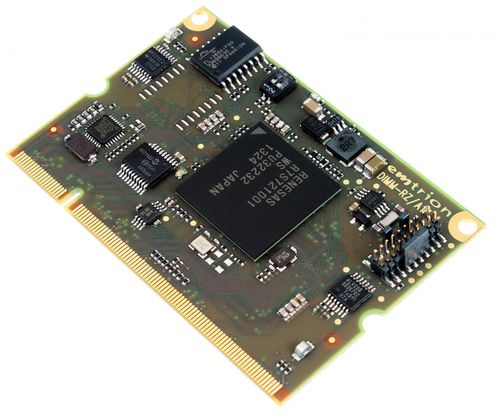

ARM Cortex-A9 computer-on-module DIMM-RZ/A1H

RenesasEthernetRS-232

Do you have growing requirements in the area of energy- and cost-efficiency? The DIMM-RZ/A1H addresses these requirements and offers a long-term availability of up to 15 years. emtrion's software specialists also provide you with in-house board support packages (BSP). The operating systems Linux, Windows Embedded (WinCE6.0, WEC7, WEC2013), Windows 10 IoT, QNX, FreeRTOS and Android are available for the DIMM family. Key features: Renesas processor R7S721001 ARM Cortex-A9 400MHz clock speed high energy-efficiency powerful 2D graphics interfaces include: Ethernet, 2x CAN, camera, LCD interface (LVDS, RGB) EtherCAT, PROFINET, CANopen optionally available industrial module (COM/ SOM), also available in extended temperature range 10MB RAM on chip and 32MB NOR flash scalable and long-term available IoT capable Giuliani light (HMI framework) optionally available Choose the right developer kit from our versatile compilation for a quick start into your application development.
