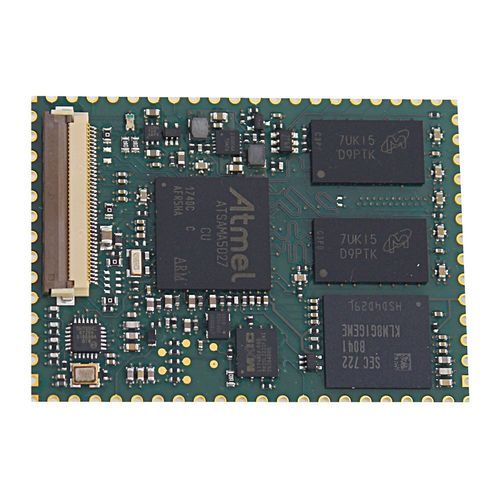

ARM Cortex-A5 computer-on-module emSTAMP-Helium

ATMELUSB 2.0Ethernet

Do you have growing requirements in the area of energy efficiency? The emSTAMP-Helium addresses these requirements and offers a long-term availability of up to 15 years. emtrion's software specialists also provide you with in-house board support packages (BSP). The operating systems Linux, Windows Embedded (WinCE6.0, WEC7, WEC2013), Windows 10 IoT, QNX, ThreadX, FreeRTOS and Android are available for module and SBC families. The emSTAMP-Helium is integrated and hence available on Sigle Board Computer emSBC-Helium. Choose the developer kit for a quick start into your application development. Key features: Microchip (Atmel) processor ATSAMA5D27 ARM Cortex-A5 NEON and TrustZone 500MHz clock speed high energy efficiency 10/100 MBit Ethernet PHY and LCD interface onboard industrial module (COM/SOM), also available in extended temperature range 512MB RAM, 4MB NOR-Flash and 4GB to 8GB NAND-Flash (eMMC) scalable and long-term available Secure- and Fastboot optionally available IoT capable size ~ 58mm x 42mm I/O-Pitch 0.1"
