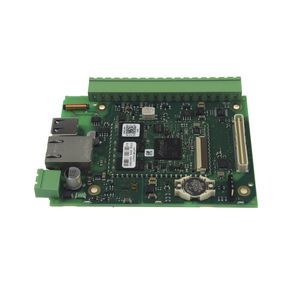

ARM Cortex-M4 SBC emSBC-Neon-CM4

USB 2.0EthernetRJ45

Do you have growing requirements in the areas of real-time capabilities and energy efficiency? The emSBC-Neon-CM4 is based on the emSTAMP-Neon-CM4 module with ST's MCU STM32F479NI. It meets these requirements of high efficiency and it is with the STM32 family part of the ST longevity program. It is usually renewed every year and offers a timely discontinuation announcement directly from the manufacturer ST Microelectronics. The manufacturer guarantees a product availability of 10 years. The operating system FreeRTOS is available for modules and SBCs of the Neon family. Choose the developer kit with or without display for a quick start into your application development. Key features: Microcontroller STM32F479NI from ST Single-core 32-bit ARM Cortex-M4 Up to 180 MHz clock speed high energy efficiency Floating point unit (FPU) Interfaces: Ethernet 10/100Mbit (LAN8720), CAN, SPI, I2C, DAC, ADC, RGB18 LCD, USB 2.0 Host and Device, MicroSD, JTAG, UART, RTC, SDIO, 6x GPIO, SAI (Serial Audio Interface) industrial module (COM/SOM), also available in extended temperature range Up to 32MB SDRAM and 16MB QSPI NOR Flash scalable and long-term available IoT capable Size 118mm x 54mm
