End mill 2698A series
corner radiussolid carbidefinishing

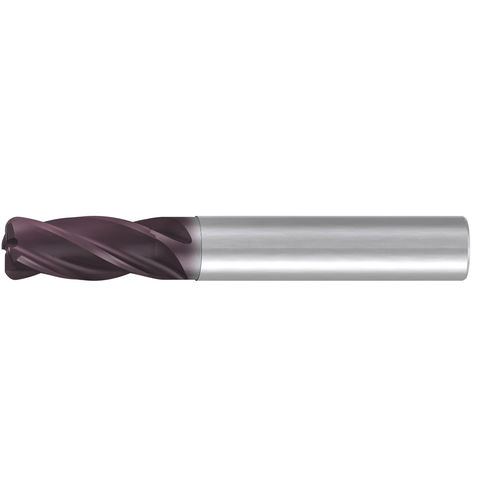

End mill - 2698A series - EMUGE-FRANKEN - corner radius / solid carbide / finishing
End mill - 2698A series - EMUGE-FRANKEN - corner radius / solid carbide / finishing
End mill - 2698A series - EMUGE-FRANKEN - corner radius / solid carbide / finishing - image - 2
Add to favorites
Compare this product

Go to the EMUGE-FRANKEN website for more information

Characteristics

Geometry
end mill, corner radius
Construction
solid carbide
Type
finishing, roughing
Material
with TiAlN coating
Other characteristics
with internal coolant, long, cutting
Diameter

Min.: 3 mm
(0.12 in)

Max.: 20 mm
(0.79 in)

Length

Min.: 57 mm
(2.24 in)

Max.: 104 mm
(4.09 in)

Description

Carbide end mill Top-Cut in long design for roughing and finishing in almost all materials. Product features and benefits: ENORM geometry enables low-vibration machining and universal use in almost all materials and milling processes. Several corner radii per cutting diameter available. TIALN coating for best possible wear protection and long tool life. Technical details cutting material: carbide category: End Mill version: Corner Radius tool interface: straight shank tool interface norm: DIN 6535 coating: TIALN internal coolant supply: without internal cooling helix angle: 35-38 deg
