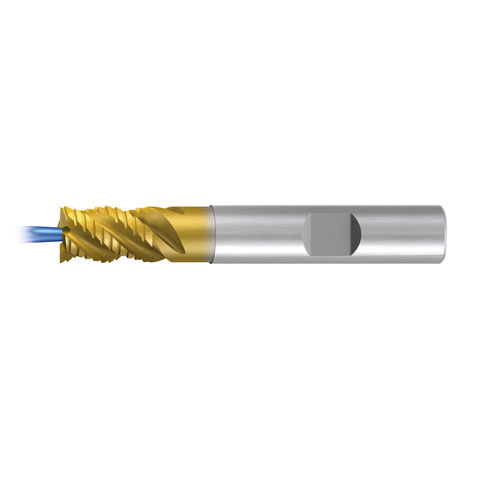

Corner radius milling cutter 2647TZ.0 seriesend millsolid carbideroughing
Add to favorites
Compare this product
Characteristics
- Geometry
- corner radius, end mill
- Construction
- solid carbide
- Type
- roughing, semi-finishing, face
- Material
- with TiAlN coating
- Other characteristics
- with internal coolant, clamping, cutting, profile, helix angle
- Diameter
Max.: 20 mm
(0.79 in)Min.: 6 mm
(0.24 in)- Length
Max.: 92 mm
(3.62 in)Min.: 54 mm
(2.13 in)
Description
Carbide end mill TiNox-Cut with lateral drive flat for roughing operations in difficult-to-machine materials.
Product features and benefits:
Suitable for HPC roughing operations due to rough-finishing gearing.
Variable pitch reduces vibrations.
Technical details
version:
Flat Face (Bevelled Edge)
tool interface:
straight shank with side-lock clamping flat
tool interface norm:
DIN 6535
coating:
TIN / TIALN
internal coolant supply:
ICA
helix angle:
45 deg
