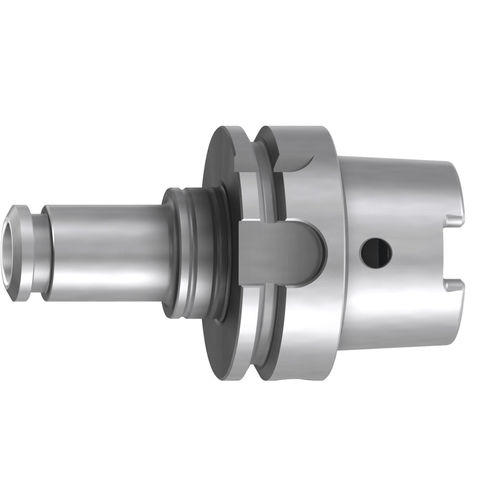

ISO collet chuck 6820DINHSK-AHSK 63A
Add to favorites
Compare this product
Characteristics
- Machine mount
- HSK 63A, HSK-A, ISO, DIN
- Clamping method
- taper shank
- Application
- milling
- Other characteristics
- precision
- Clamping range
Min.: 0.2 mm
(0.01 in)Max.: 25 mm
(0.98 in)- Rotational speed
25,000 rpm
(157,080 rad.min-1)
Description
Collets holder, hollow taper shank (HSK-A 63) according to DIN ISO 69893-1, for PGR collets.
Product features and benefits:
Designed for internal cooling lubricant supply.
Very precise machining thanks to fine-balancing and runout ≤ 3µm.
Technical details
concentricity:
<=0,003 mm
category:
powRgrip®
version:
Holder
