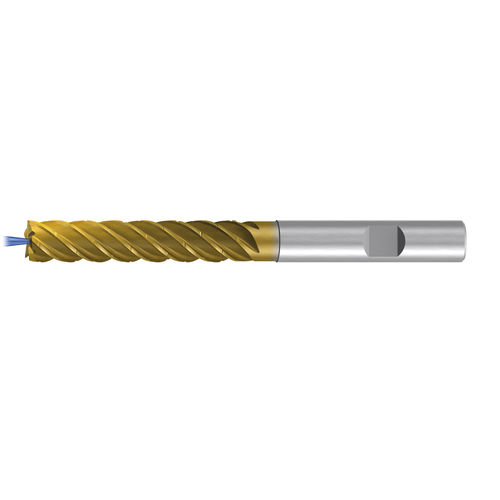

End mill 2543TZ series
solid carbidefinishingroughing

end mill
end mill
end mill
Add to favorites
Compare this product

Go to the EMUGE-FRANKEN website for more information

Characteristics

Geometry
end mill
Construction
solid carbide
Type
finishing, roughing, face
Material
with TiAlN coating
Other characteristics
cutting edge, with internal coolant, helix angle, clamping, extra-long, cutting, profile
Diameter

10 mm, 12 mm, 16 mm, 20 mm, 25 mm
(0.39 in, 0.47 in, 0.63 in, 0.79 in, 0.98 in)

Length

105 mm, 118 mm, 142 mm, 163 mm, 200 mm
(4.13 in, 4.65 in, 5.59 in, 6.42 in, 7.87 in)

Description

Carbide end mill Trochoid TiNox-Cut with lateral drive surface and extra-long design (5xD) for trochoidal roughing of difficult to machine and tough materials. Product features and benefits: Also suitable for finishing thanks to newly developed NF cutting edge profile. Chip divider for short chips and to prevent chip jams. TiN/TIALN coating for longer tool life. Technical details category: End Mill, Trochoidal End Mill version: Flat Face (Bevelled Edge) tool interface: straight shank with side-lock clamping flat tool interface norm: DIN 6535 coating: TIN / TIALN internal coolant supply: ICA helix angle: 38-42 deg
