End mill 1963A series
ball nosesolid carbidefinishing

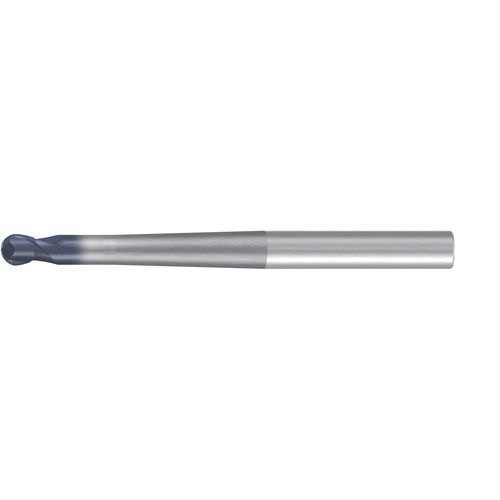

End mill - 1963A series - EMUGE-FRANKEN - ball nose / solid carbide / finishing
End mill - 1963A series - EMUGE-FRANKEN - ball nose / solid carbide / finishing
End mill - 1963A series - EMUGE-FRANKEN - ball nose / solid carbide / finishing - image - 2
Add to favorites
Compare this product

Go to the EMUGE-FRANKEN website for more information

Characteristics

Geometry
end mill, ball nose
Construction
solid carbide
Type
finishing
Material
with TiAlN coating
Other characteristics
with internal coolant, helix angle, extra-long, cutting, HSC
Diameter

Max.: 16 mm
(0.63 in)

Min.: 1 mm
(0.04 in)

Length

Max.: 200 mm
(7.87 in)

Min.: 80 mm
(3.15 in)

Description

Carbide ball-nose end mill Hard-Cut in extra long design for finishing applications in many materials, including hardened materials. Product features and benefits: TIALN coating for longer tool life. Suitable for HSC finishing. Highly accurate radius tolerance of ±5µm for precise machining results and highest repeatability. Technical details tool interface: straight shank tool interface norm: DIN 6535, ASME coating: TIALN internal coolant supply: without internal cooling helix angle: 30 deg
