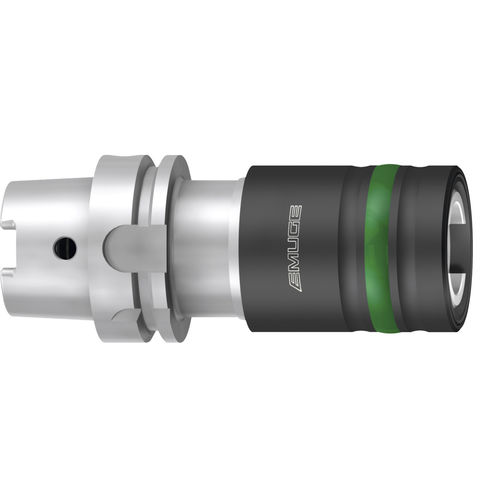

HSK tool holder KSN/MQL 2
DIN 69893tappingthread

HSK tool holder - KSN/MQL 2 - EMUGE-FRANKEN - DIN 69893 / tapping / thread
HSK tool holder - KSN/MQL 2 - EMUGE-FRANKEN - DIN 69893 / tapping / thread
HSK tool holder - KSN/MQL 2 - EMUGE-FRANKEN - DIN 69893 / tapping / thread - image - 2
Add to favorites
Compare this product


Characteristics

Machine mount
HSK, DIN 69893
Application
tapping, thread
Other characteristics
quick-change, for CNC machines, cutting
Clamping range

Min.: 6 mm
(0.24 in)

Max.: 12 mm
(0.47 in)

Description

Quick-change adapter KSN/MQL for 2-channel minimum quantity lubrication with length compensation for use with threading tools on CNC machining centres. Product features and benefits: Designed for use with all EM/MQL or EM-Z/MQL quick-change adapters. With length compensation in push and pull direction to compensate for deviations between spindle feed and thread pitch. Specially developed pressure point mechanism for reliable cutting of the tool. Release on pull to prevent damage as a result of excessive axial tensile loads. The MQL design enables a flow-optimised transfer of the MQL medium from the machine spindle to the threading tool. Suitable for minimum quantity lubrication up to 6 bar. Technical details designation: quick-change tap holder type: KSN MQL 2 channel
