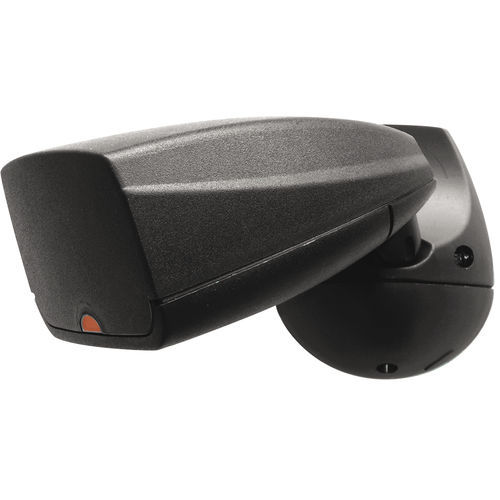

Microwave motion sensor HAWK 2

MICROWAVE MOTION SENSOR Wide coverage area Sharp, adjustable detection field Directional settings Easy to install DESCRIPTION The HAWK 2 utilizes K-band microwave technology to detect people and vehicles from an overhead position. It provides wide coverage and high resolution to activate all types of automatic doors and industrial gates. The HAWK 2 is easily installed at a height up to 20 feet (6 meters). With its versatile mechanical orientation, the HAWK 2 ensures accurate positioning to the required coverage area. The detection sensitivity and direction of movement (approaching, leaving or both) are programmed by DIP switch settings. SYSTEM FEATURES Advanced K-band planar microwave technology Easy installation and adjustment Wall or ceiling installation Directional sensitivity: toward, away or both High coverage area resolution Installation height up to 20 feet (6 meters) Degree of protection: IP 65 Operating frequency - 24.150 GHz Output power (EIRP) - <20dBm Detectable speed - 0.1 m/s min. Vertical directionality - 0…60° Horizontal directionality - +/- 45° Installation height - Max. 6 m Range - 1…10 m adjustable Relay control time - 1…6 sec. adjustable Relay output configuration - Form C (SPDT) Relay contact rating - 1A @ 24V AC/DC Detection indicator - Red LED Operating temperature - -4°F…122°F (-20°C…50°C) Supply Voltage - 12…24 VDC/VAC Operating current - Max. 40mA Dimensions - 6.3”(160mm) x 3.8”(95mm) x 4.4”(110mm) Weight - 1.0 lbs. (450 g) Housing - ABS (plastic) Connection - 6.5’ (2m) cable Mechanical protection - IP65
