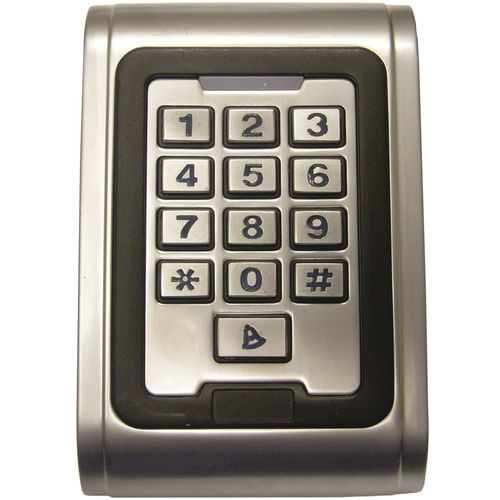

RFID card reader CR-2000

Wiegandsmartfor access control

WATERPROOF WIEGAND CARD READER/KEYPAD Vandal resistant Any combination of card and keypad access Rugged waterproof metal body User access monitoring Low power consumption DESCRIPTION SYSTEM OVERVIEW The CR-2000 waterproof wiegand card reader and keypad provides secure access control for up to 2,000 users via pass cards and/or individual user pass codes. The CR-2000 uses RFID induction technology to communicate with contactless Mifare smart cards. Secured in a waterproof metal housing, the CR-2000 has a tamper alarm, short circuit protection and a luminous keypad for night time use. Wiegand output enables user access monitoring. The CR-2000 waterproof weigand card reader and keypad also offers low power consumption (30mA standby). This waterproof weigand card reader and keypad may also be used stand alone for access control of doors, gate and barrier arms. WATERPROOF WIEGAND CARD READER/KEYPAD FEATURES Back-lit keys Wiegand and relay outputs 2000 users (card or passcode) Keypad user delete for lost cards <30mA standby current 9-25 VDC Operating temp -25°C~60°C Tamper alarm Door call button
