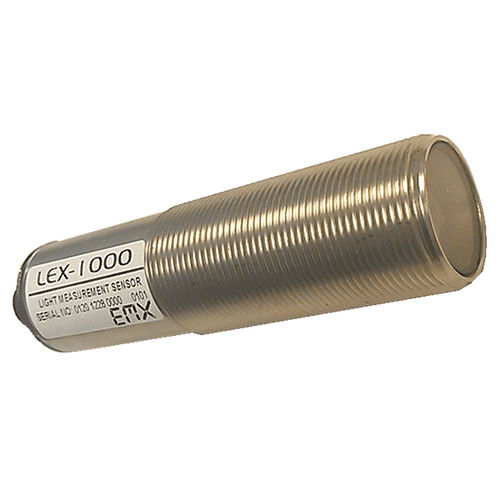

Visible light sensor LEX-1000

LEDanalogUSB

High sensitivity and high resolution PC-based configuration software USB/RS232 interface Analog outputs (RGB) DESCRIPTION RGB LIGHT SENSOR OVERVIEW The LEX-1000 RGB light sensor is designed to measure relative color characteristics of a wide variety of light sources or illuminated objects by separating the light into its red, green, and blue components. The LEX –1000 is the perfect solution for monitoring processes that involve light, performing comparative quality measurements on light-emitting devices, or any process where a comparative light measurement is necessary. The sensor optics collect light and focuses this light onto a sensitive receiver element. The sensor analyzes the light for its constituent RGB (red, green, blue) values. If the readings of all of the three colors fall within the preprogrammed parameters, the sensor issues a discrete signal that indicates a color match. Highspeed discrete outputs provide a standard interface to factory automation systems. The LEX-1000 provides four programmable color recognition channels, RGB analog outputs, and serial communications via RS232 or USB. For light measurement COLOR LIGHT MEASUREMENT SENSOR APPLICATIONS: Evaluation of all visible light sources Comparative light measurement Relative color measurement LCD and LED display quality Automotive lighting verification SOFTWARE ColorMax Windows™ Application Program provides a comprehensive approach to sensor set-up, file management, and real-time sample analysis and evaluation. COLOR LIGHT MEASUREMENT SENSOR FEATURES High resolution Four programmable color recognition channels High-speed discrete outputs provide standard interface to factory automation systems
