Vehicle detector ULTRA-MVP

presencevoltageautomatic

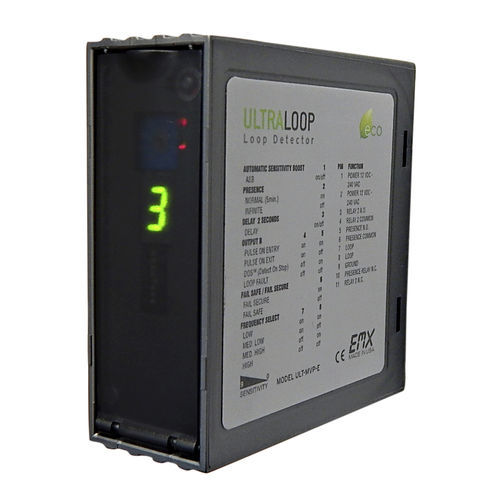

MULTI-VOLTAGE VEHICLE LOOP DETECTOR Ignores cross traffic in tight spaces with DETECT-ON-STOP™ feature Fits into small operator housings, saving space Easy to install and setup with the ULTRAMETER™ sensitivity display Low current draw – green product Easy identification of interference problems using the crosstalk and RFI interference display DESCRIPTION OVERVIEW The ULTRA-MVP multi-voltage vehicle loop detector combines small size with a 12VDC to 240VAC input range. Reduce inventory costs by stocking and transporting just one universal unit. This detector features DETECT-ON-STOP™ or (DOS) technology, which allows detection only when a vehicle has come to a complete stop on the loop. This exclusive feature is unique to EMX and is a major advantage if you want to ignore cross traffic in tight spaces. The ULT-MVP provides two relay outputs – one for indicating vehicle presence and a second for loop fault or pulse on entry/pulse on exit, or DETECT-ON-STOP. This detector is also available in a two channel unit FEATURES OF OUR MULTI-VOLTAGE VEHICLE LOOP DETECTOR The ULTRA-MVP differentiates itself from other vehicle loop detectors because of its versatile features: Single or dual channel unit for US or EU wiring ULTRAMETER™ displays optimum sensitivity setting/crosstalk interference 10 sensitivity settings 4 operating frequencies Automatic sensitivity boost (ASB), delay, fail-safe/fail-secure and infinite or normal (5 min.) presence Small size: 73 x 38 x 78mm Socket mount -11 pin (JEDEC B11-88) CE compliant DETECT-ON-STOP™ allows detection only when a vehicle has come to a complete stop on the loop
